AA11VO200DS/10R*G* (R909429578)

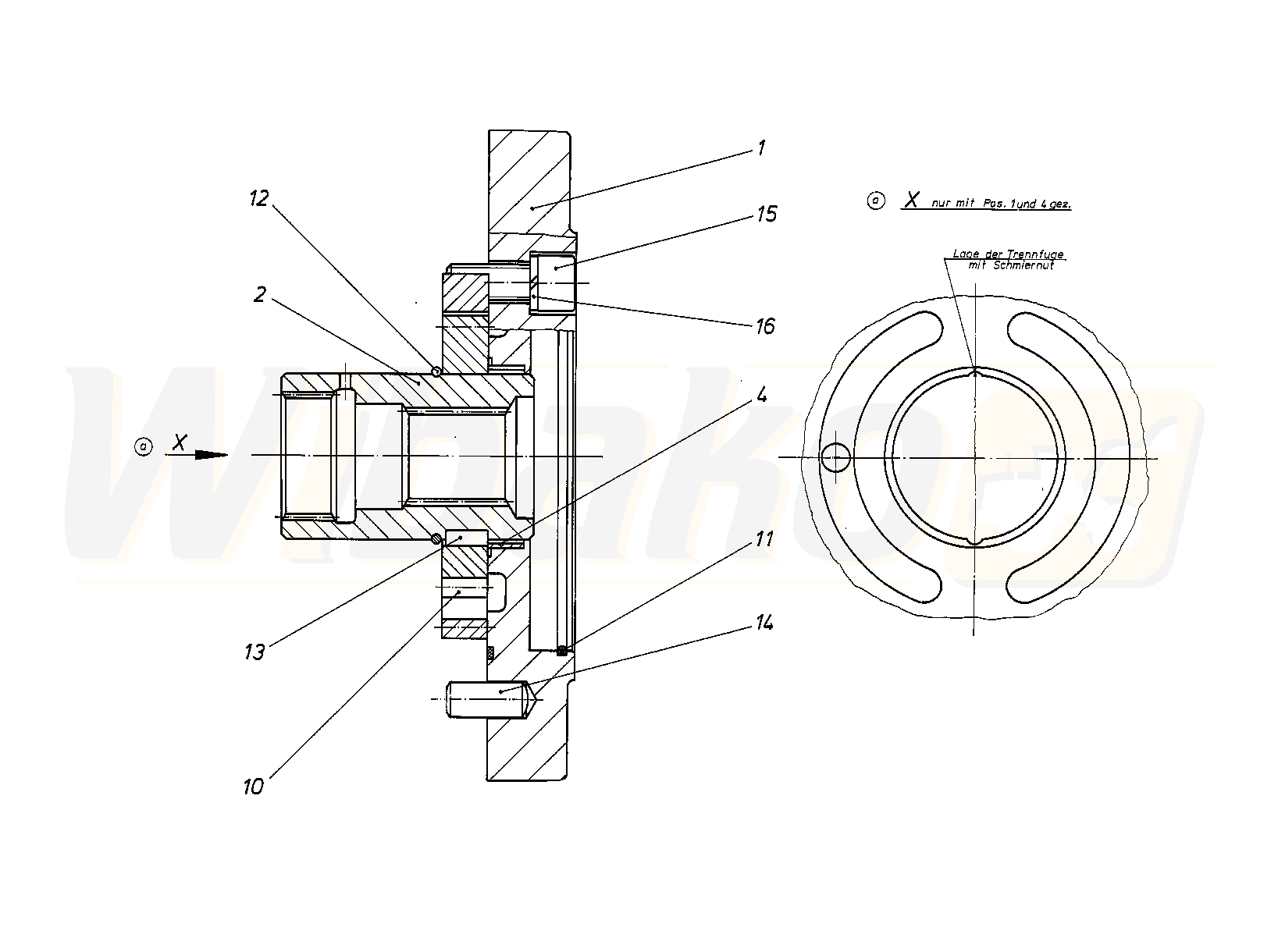

INTERNAL GEAR PUMP ASSEMBLY (104640)

INTERNAL GEAR PUMP ASSEMBLY
(104640)


1

INTERMEDIATE FLANGE
(104658)


2

THROUGH DRIVE SHAFT
(104659)


4

BUSHING
(104651)


10

GEROTOR PART
(104660)


11

O-RING
(12936)


12

SNAP RING
(104661)


13

PARALLEL KEY
(104662)


14

STRAIGHT PIN
(12373)


15

SOCKET HEAD CAP SCREW
(10164)


16

SPRING LOCK WASHER
(10165)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
