AH A10V O110 DFR1/31R-VSC12K68 -S2866 (R902478383)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 110 cm3. Pressure controller with flow controller, hydraulic, X-T plugged with flushing function. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; lateral top bottom for through drive. Through drive. Flange ISO 3019-1 101-2 (B) . Hub for splined shaft 7/8 in 13T 16/32DP.

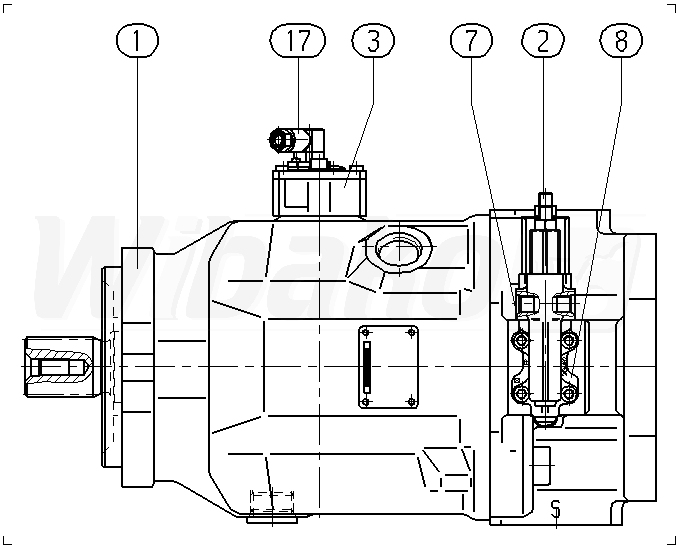

1

BASE UNIT
(105258)

Group »


2

CONTROL VALVE
(64421)

Group »


3

ASSEMBLY KIT
(20567)


7

SOCKET HEAD CAP SCREW
(10002)


8

SEAL
(10001)


17

EQUIPMENT SOCKET
(20568)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
