LA11VO110DRS0A00/40MR+A4VG105EP4DT1/32R (R902542436)

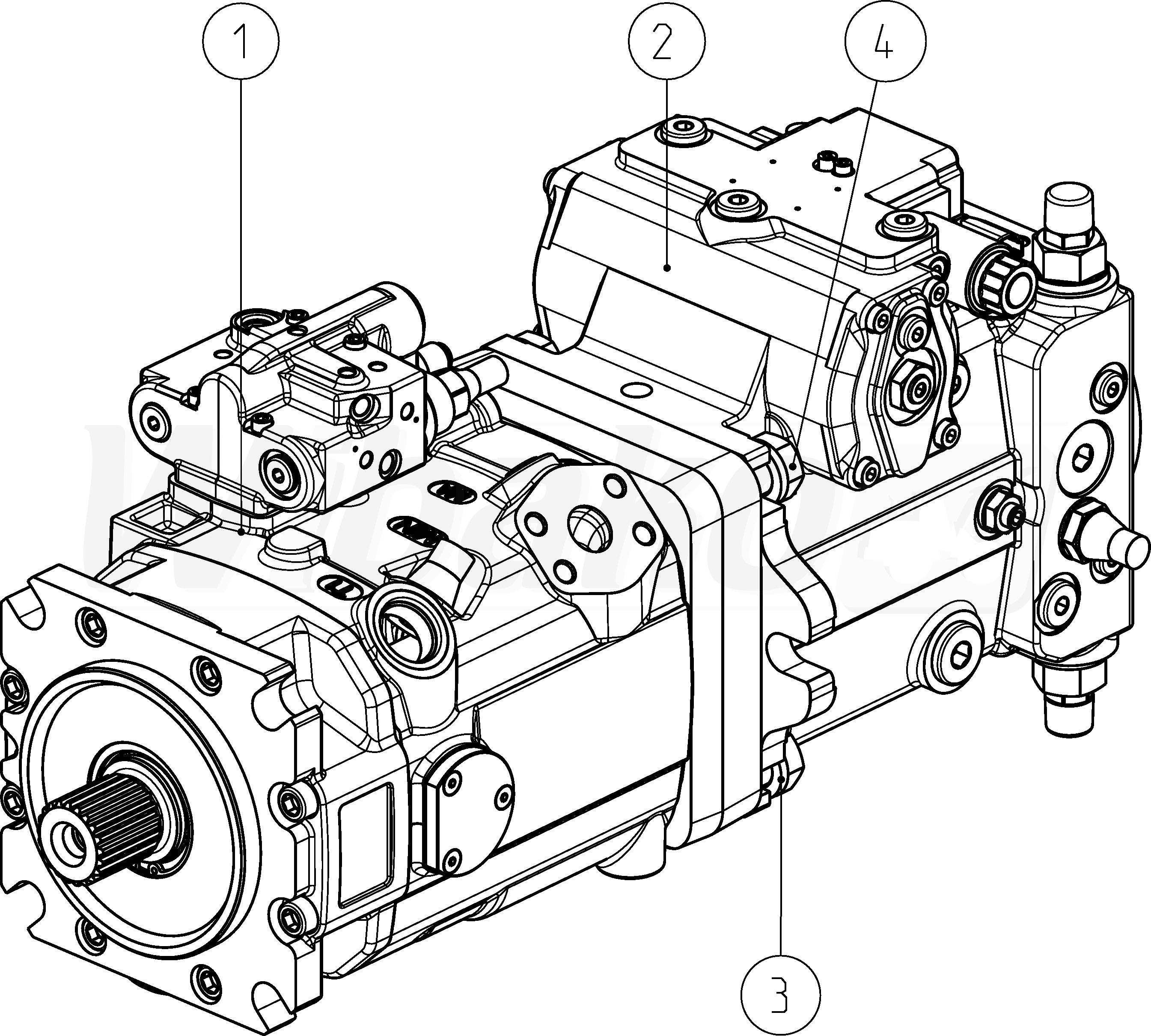

Set of 2 pumps:
1.
2. Axial piston variable pump A4VG. Geometric displacement 105 cm3. Proportional control, electric U = 24 V. Pressure cut-off. Stroking chamber pressure port X3, X4. Without DA control valve. Series 3, index 2. Direction of rotation (viewed on drive shaft): clockwise.
1.
2. Axial piston variable pump A4VG. Geometric displacement 105 cm3. Proportional control, electric U = 24 V. Pressure cut-off. Stroking chamber pressure port X3, X4. Without DA control valve. Series 3, index 2. Direction of rotation (viewed on drive shaft): clockwise.
The above diagrams belong to Rexroth www.boschrexroth.com
