PT-A6VM150EP600P000A/71MWV0D4T11DV-0 (R902255900)

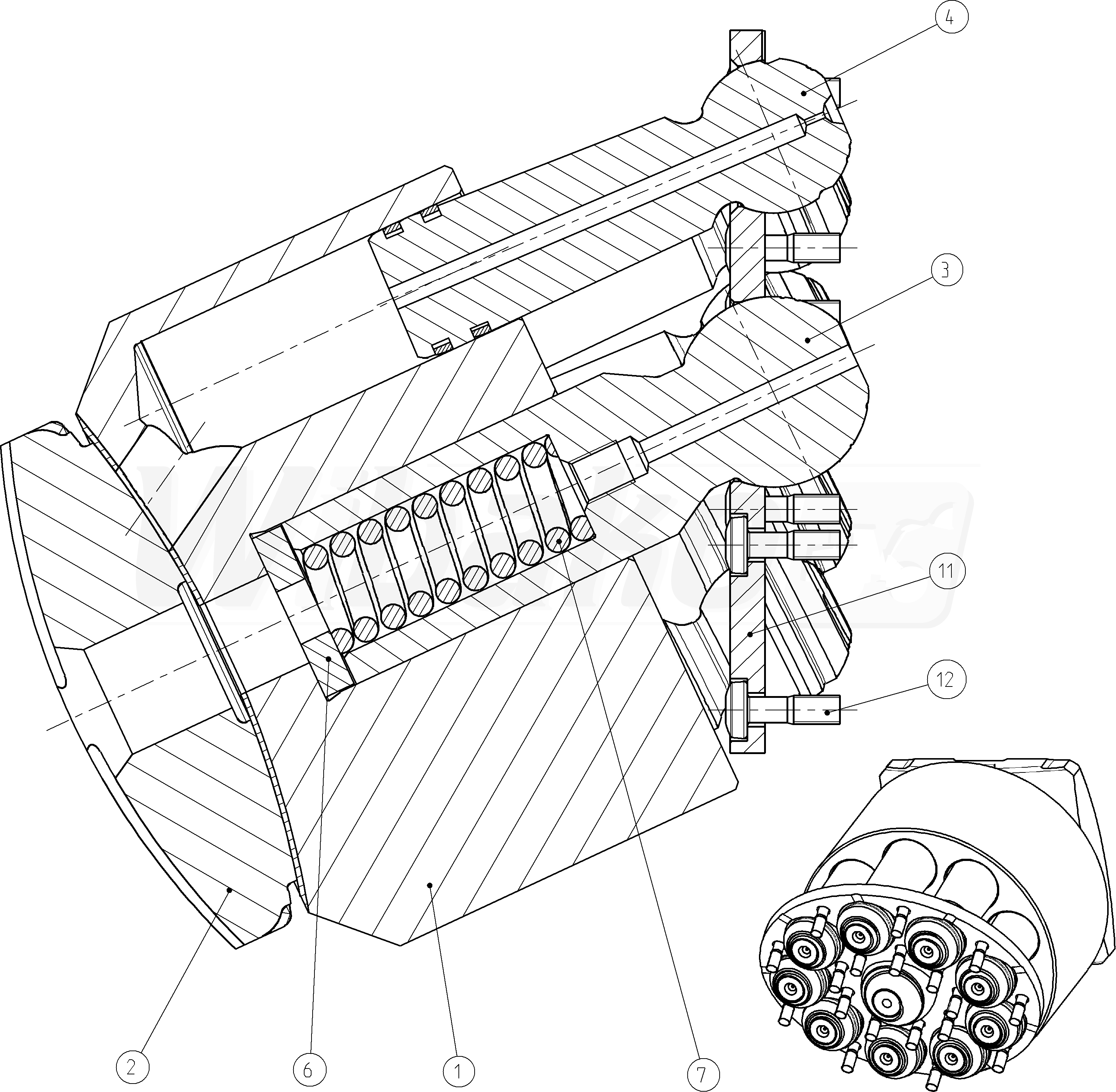

ROTARY GROUP (102686)

ROTARY GROUP
(102686)


1

CYLINDER
(102688)


2

CONTROL LENS
(102689)


3

CENTER PIN
(102690)


4

PISTON
(102691)


6

ADJUSTMENT SHIM
(101895)

Group »


7

COMPRESSION SPRING
(54764)


11

RETAINING PLATE
(102692)


12

PAN-HEAD SCREW
(10294)



Return
