PT-A6VM150EP6D1P007B/71MWV0D4T11IV-S (R902247320)

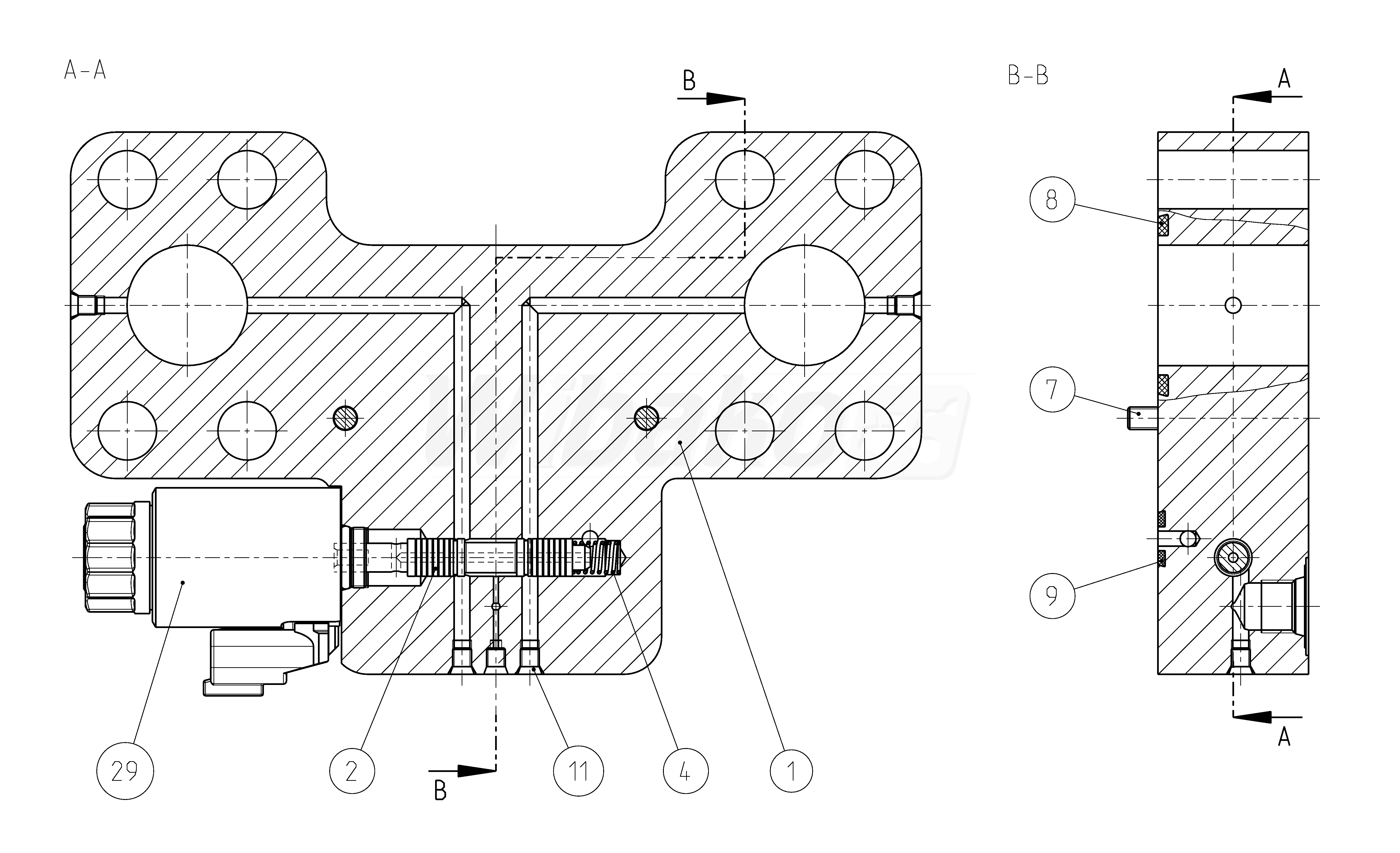

DIRECTIONAL-CONTROL VALVE (106760)

DIRECTIONAL-CONTROL VALVE
(106760)


1

INTERMEDIATE PLATE
(106763)

Group »


2

CONTROL PISTON
(12477)


4

COMPRESSION SPRING
(12479)


7

SOCKET HEAD CAP SCREW
(16129)


8

O-RING
(106764)


9

O-RING
(11721)


11

DOUBLE BREAK-OFF PLUG
(19008)


29

SWITCHING SOLENOID
(11168)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
