A A10V O 5 EK1 /52R-VCX14N00 (R902432555)

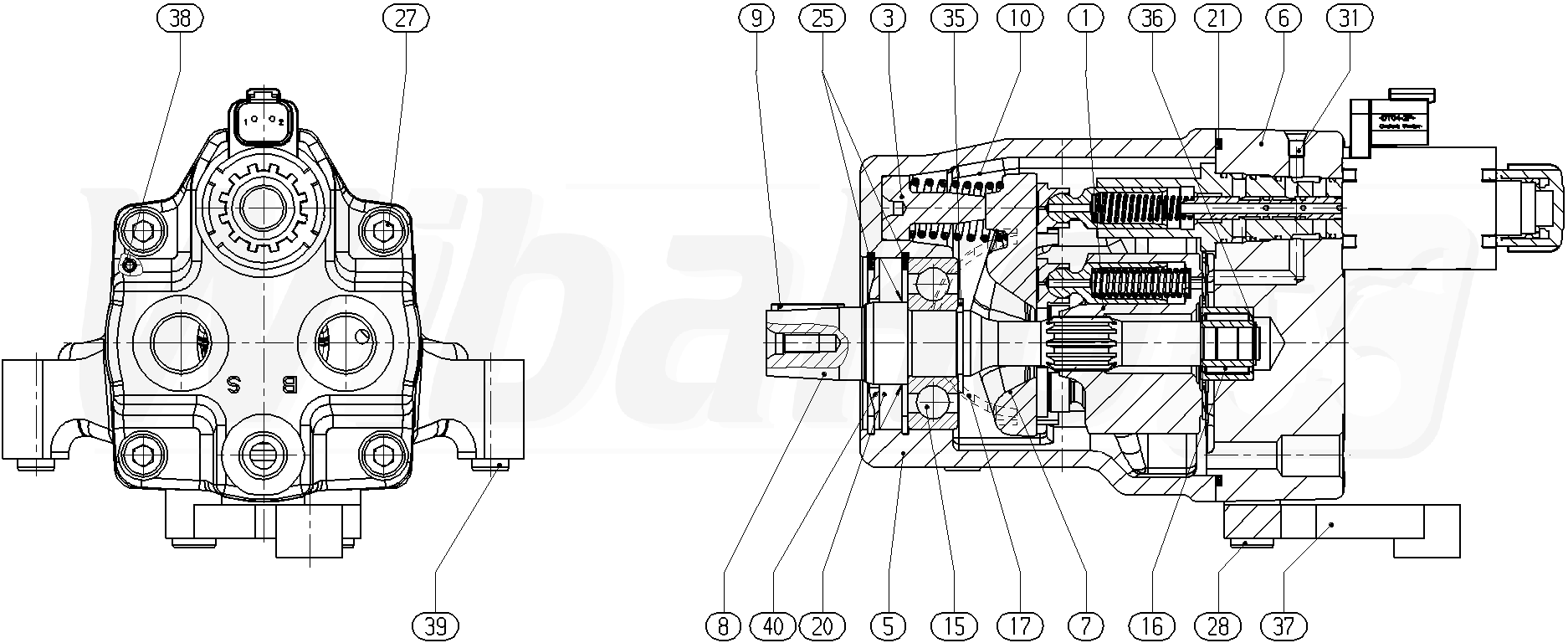

BASE UNIT (107995)

BASE UNIT
(107995)


1

ROTARY GROUP
(107997)

Group »


3

STOP
(107998)


5

PUMP HOUSING
(107999)


6

CONNECTION PLATE
(108000)


7

SWASH PLATE
(108001)


8

DRIVE SHAFT
(108002)


9

PARALLEL KEY
(108004)


10

COMPRESSION SPRING
(46841)


15

DEEP-GROOVE BALL BEARING
(46842)


16

NEEDLE BEARING
(108005)


17

BEARING SHELL
(46844)


20

SHAFT SEALING RING
(108006)


21

O-RING
(108007)


25

V-RING
(15192)


27

SOCKET HEAD CAP SCREW
(54875)


28

SOCKET HEAD CAP SCREW
(10096)


31

DOUBLE BREAK-OFF PLUG
(19008)


35

RETAINING RING
(46849)


36

V-RING
(108009)


37

FASTENING FLANGE
(108010)


38

SLOTTED SPRING PIN
(13263)


39

SLEEVE
(108011)


40

SUPPORTING DISC
(108012)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
