A A10V O 28 DFR1 /52L-VSC12N00 -S2954 (R902501711)
Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 52. Geometric displacement 28 cm3. Pressure controller with flow controller, hydraulic, X-T plugged with flushing function. Directions of rotation: counter-clockwise (viewed on drive shaft). Seal: FKM (fluoroelastomer). Splined shaft ISO 3019-1, standard. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports, fastening thread metric, laterally opposite, for through drive. Without through drive.

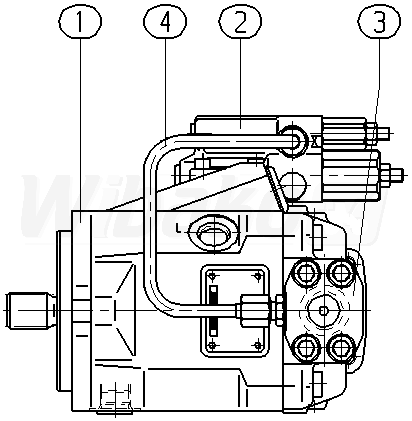

The above diagrams belong to Rexroth www.boschrexroth.com
