A A10V O 28 DR /31R-VSC61N00 -S4501 (R902502159)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 28 cm3. Pressure controller, hydraulic. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518 Working ports UNF. Fastening thread UNF; rear, not for through drive. Without through drive.

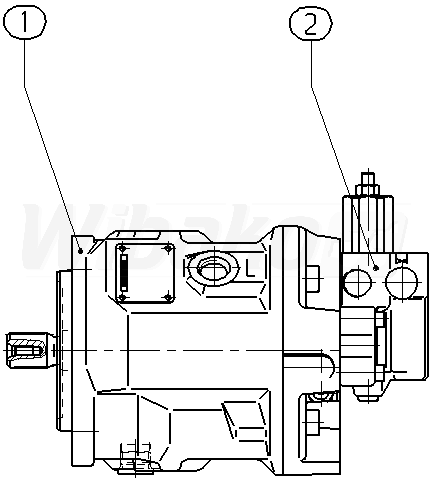

1

BASE UNIT
(108425)

Group »


2

CONTROL VALVE
(16454)

Group »


6

SIDE MARKER RING
(38840)


7

SIDE MARKER RING
(108815)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
