AA10VO28DRG/52R-PSC12H00-S1180 (R902409716)
Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 52. Geometric displacement 28 cm3. Pressure controller with pressure cut-off, hydraulic, remote controlled. Directions of rotation: clockwise (viewed on drive shaft). Splined shaft ISO 3019-1, standard. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports, fastening thread metric, laterally opposite, for through drive.

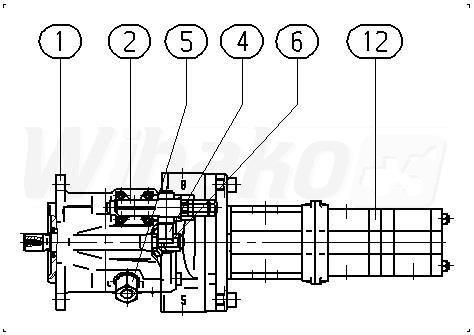

The above diagrams belong to Rexroth www.boschrexroth.com
