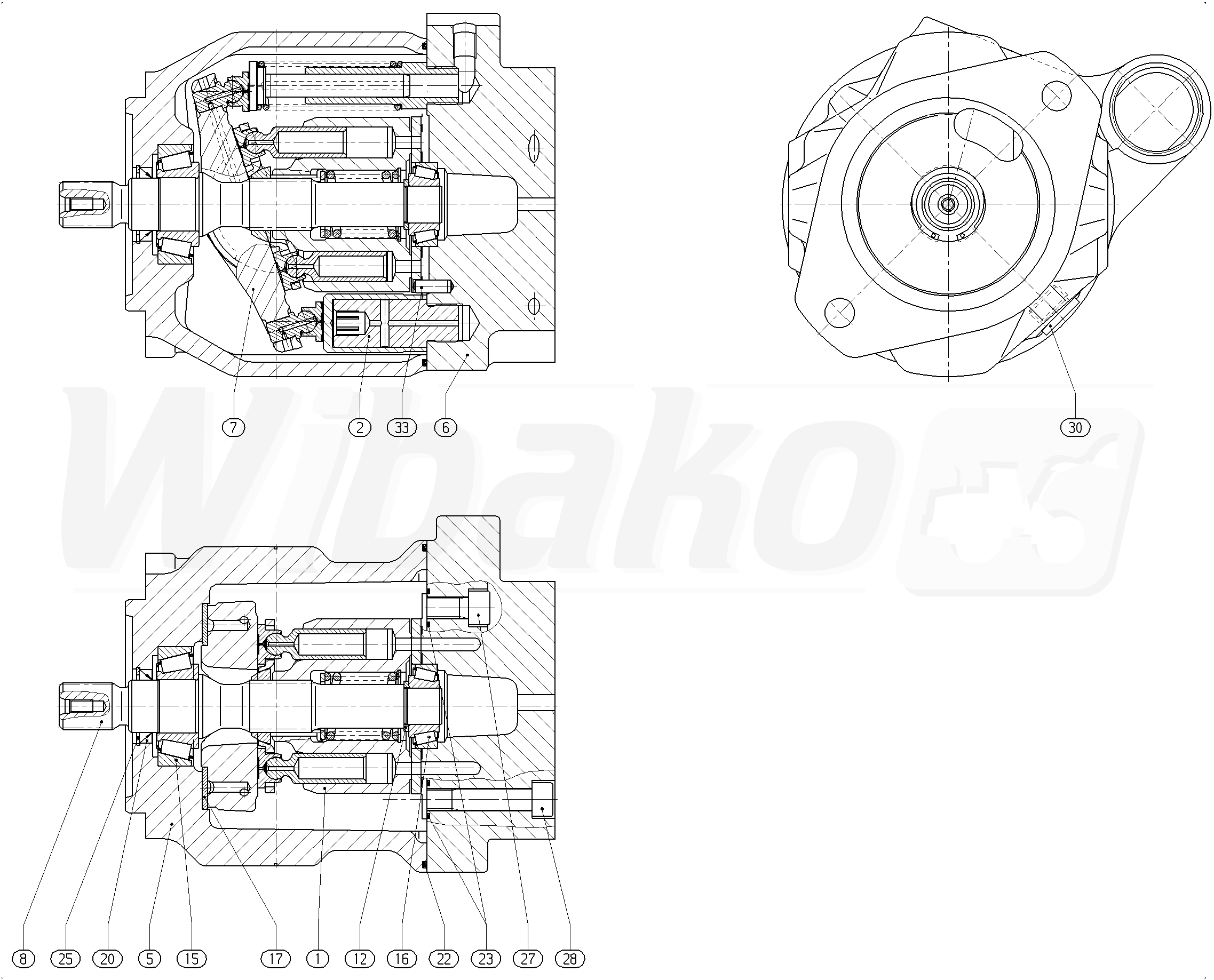

A A10V O 28 OV /31L-PSCXXN00 -S1526 (R902423762)
BASE UNIT (109544)

BASE UNIT
(109544)


1

ROTARY GROUP
(17272)

Group »


2

ADJUSTING PIECE
(18435)

Group »


5

PUMP HOUSING
(109545)


6

COVER
(109546)


7

SWASH PLATE
(19839)


8

DRIVE SHAFT
(11880)


12

ADJUSTMENT SHIM
(11883)


15

TAPERED-ROLLER BEARING
(11885)


16

TAPERED-ROLLER BEARING
(11886)


17

BEARING SHELL
(18439)


20

SHAFT SEALING RING
(16758)


22

O-RING
(18440)


23

R-RING
(27107)


25

RETAINING RING
(11890)


27

SOCKET HEAD CAP SCREW
(15815)


28

SOCKET HEAD CAP SCREW
(30724)


30

SCREW PLUG
(11372)


33

STRAIGHT PIN
(11892)
