A A10V O 28ED 72/31L-PSC11N00P (R902439958)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 28 cm3. Pressure controller with pressure cut-of, electrical, negative control U = 24 V. Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; rear not for through drive. Without through drive. DEUTSCH - molded connector, 2-pin, without suppressor diode.

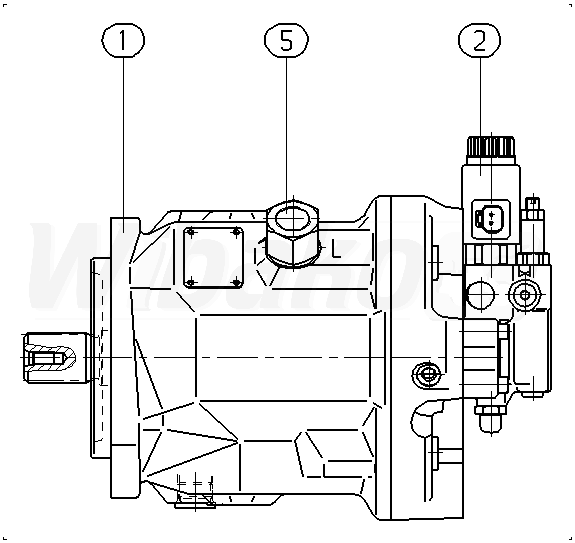

The above diagrams belong to Rexroth www.boschrexroth.com
