AA10VO28ED72/31L-PSC12K68T-SO420 (R902420411)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 28 cm3. Pressure controller with pressure cut-of, electrical, negative control U = 24 V. Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; lateral top bottom for through drive. Through drive. Flange ISO 3019-1 101-2 (B) . Hub for splined shaft 7/8 in 13T 16/32DP.

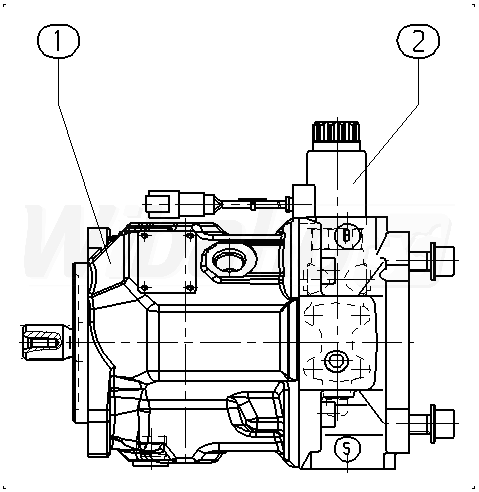

The above diagrams belong to Rexroth www.boschrexroth.com
