AA10VO28DR/31R-PSC12P31-SO422 (R910948791)

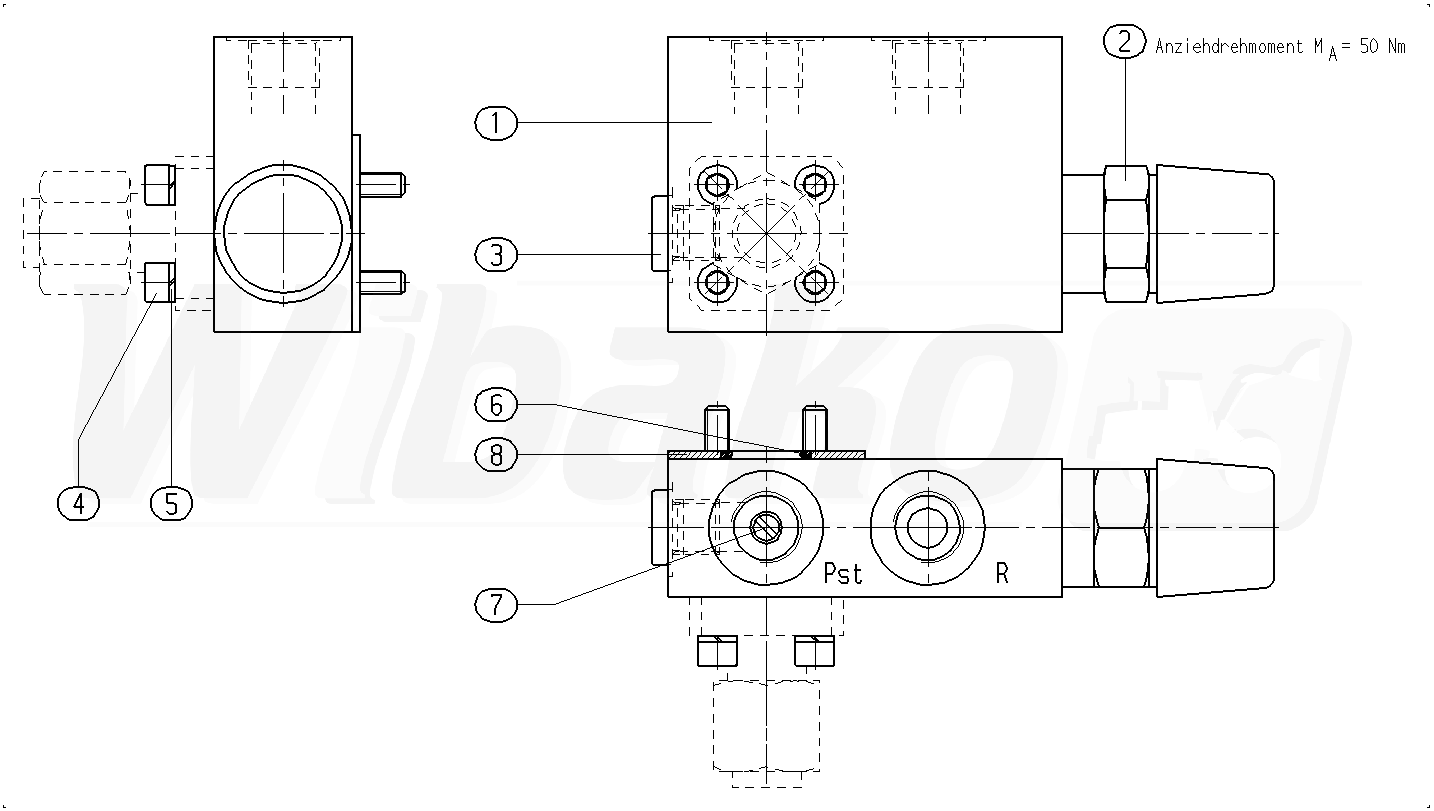

PRESSURE RELIEF VALVE (17568)

PRESSURE RELIEF VALVE
(17568)


1

VALVE HOUSING
(17749)


2

PRESSURE RELIEF VALVE
(17750)


3

SCREW PLUG
(11348)


4

SOCKET HEAD CAP SCREW
(17751)


5

SPRING LOCK WASHER
(17752)


6

O-RING
(17753)


7

NOZZLE
(17724)


8

GASKET
(17754)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
