A A10V O 28 DRG /31R-PCC12N00 -SO744 (R910993776)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 28 cm3. Pressure controller with pressure cut-of, hydraulic, remote controlledMounting flange ISO 3019-1 (SAE) 2-hole.

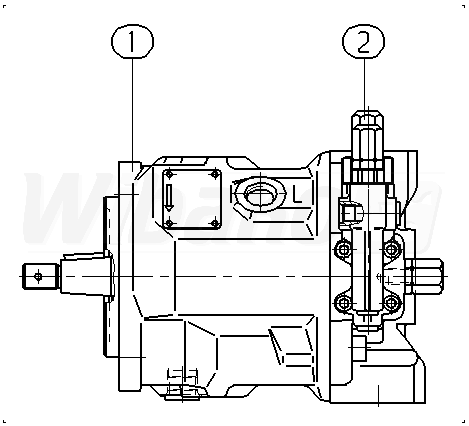

The above diagrams belong to Rexroth www.boschrexroth.com
