AA10VO28FHD/31R-PSC12N00-SO652 (R910999702)

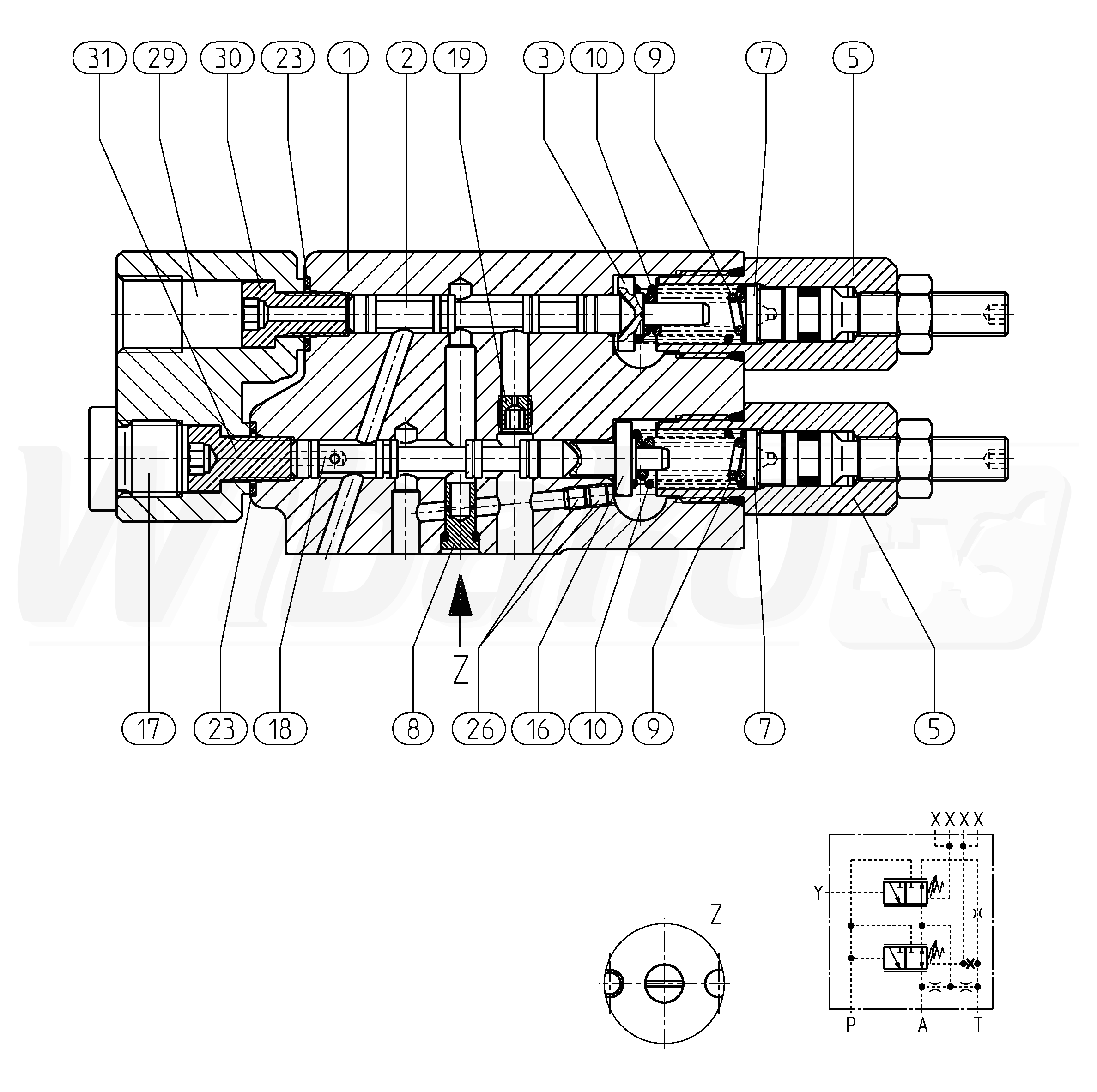

CONTROL VALVE (110258)

CONTROL VALVE
(110258)


1

VALVE HOUSING
(13920)


2

VALVE SPOOL
(17237)


3

SPRING DISK
(11910)


5

SERVO UNIT
(13922)

Group »


7

WASHER
(11913)


8

ORIFICE
(11917)

Group »


9

COMPRESSION SPRING
(11914)


10

COMPRESSION SPRING
(11915)


16

SPRING DISK
(19181)


17

SCREW PLUG
(11348)


18

VALVE SPOOL
(13250)


19

NOZZLE
(14002)


22

BONDED SEAL RING
(11921)


26

SETSCREW
(13925)


29

DOUBLE ADAPTER
(109563)


30

HOLLOW BOLT
(83835)


31

SCREW
(83837)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
