A A10V O 28ED 72/52R-VRC12N00P -SO965 (R902450395)

Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 52. Geometric displacement 28 cm3. Pressure controller, electric, negative control, U = 24 V. Directions of rotation: clockwise (viewed on drive shaft). Seal: FKM (fluoroelastomer). Splined shaft ISO 3019-1, for higher torque. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports, fastening thread metric, laterally opposite, for through drive. Without through drive. DEUTSCH - molded connector, 2-pin, without suppressor diode (for electric control).
1

BASE UNIT
(109473)

Group »


2

CONTROL VALVE
(110293)

Group »


5

INTERMEDIATE PLATE
(18525)


6

O-RING
(18405)


7

SOCKET HEAD CAP SCREW
(16351)


9

SCREW PLUG
(11348)


10

SEAL
(10001)


60

SAFETY CAP
(11904)


61

SAFETY CAP
(11905)



Return

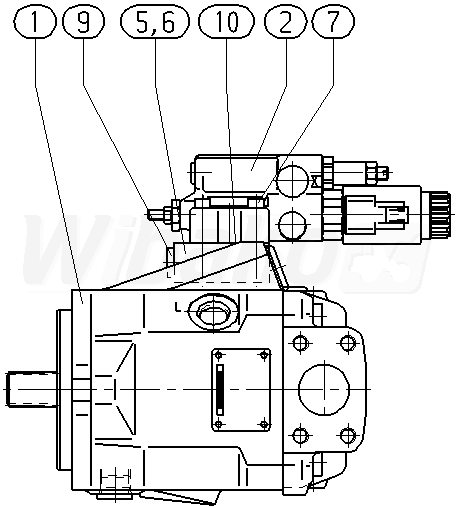

The above diagrams belong to Rexroth www.boschrexroth.com
