A A10V O 28ED 72/53L-VSC62G70T (R902466551)

Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 28 cm3. Pressure controller, electric, negative control U = 24 V. Seal: FKM (fluoroelastomer). Splined shaft ISO 3019-1, standard. Mounting flange ISO 3019-1 (SAE) 2-hole.
1

BASE UNIT
(110384)

Group »


2

CONTROL VALVE
(18408)

Group »


3

SERVO UNIT
(27217)

Group »


24

SOCKET HEAD CAP SCREW
(14121)


27

SPLINED COUPLING
(19608)


28

HYDRAULIC GEAR PUMP


30

SCREW PLUG
(11873)


40

STOP SCREW
(21165)


43

O-RING
(15835)



Return

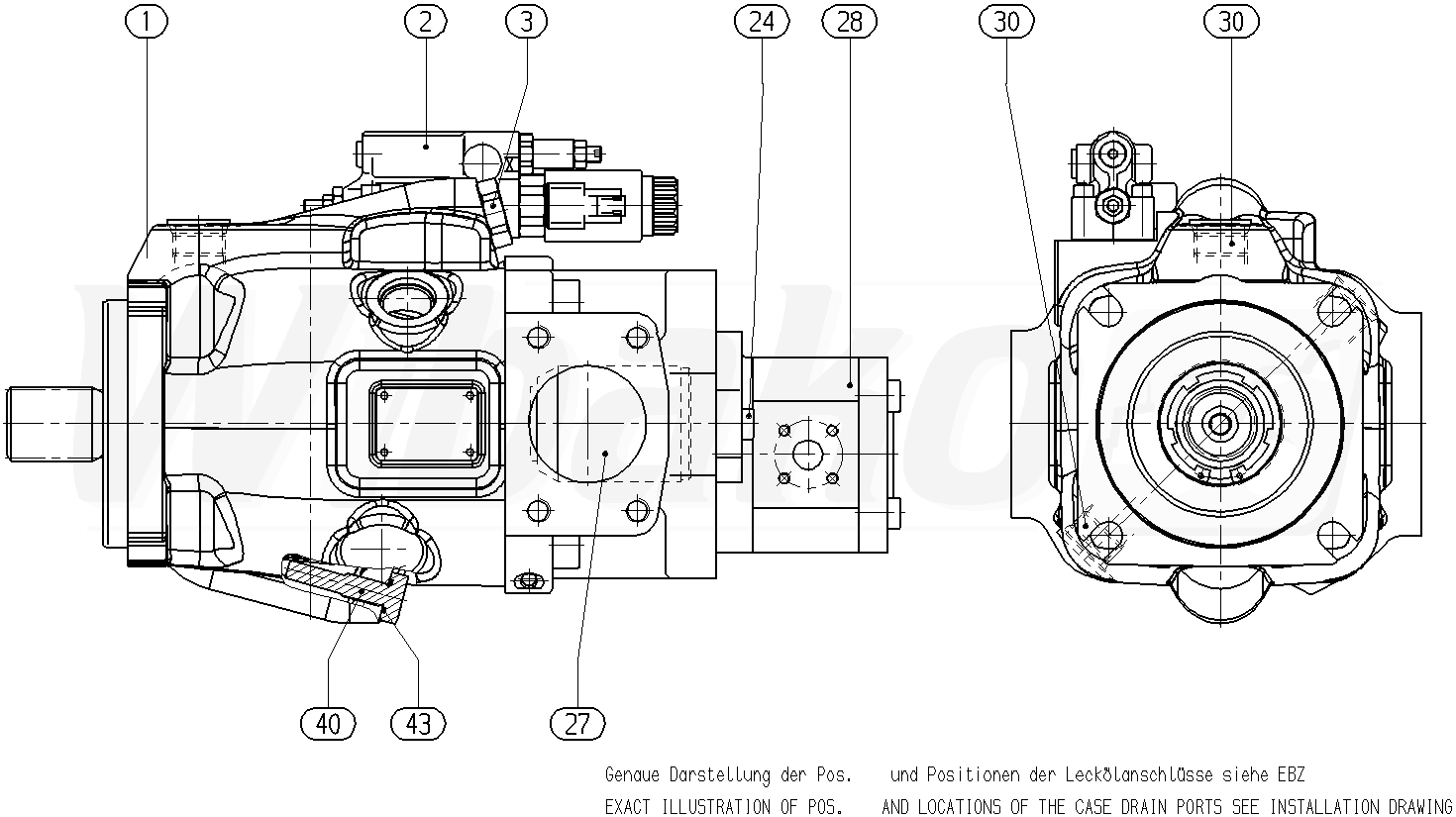

The above diagrams belong to Rexroth www.boschrexroth.com
