A A10V O 28LA7DS/53R-VSC12N00 -S2287 (R902453962)
Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 28 cm3. Power controller with pressure cut-of , flow control X-T plugged, hydraulic with flushing function, beginning of control from 71 to 105 bar. Seal: FKM (fluoroelastomer). Splined shaft ISO 3019-1, standard. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports, fastening thread metric, laterally opposite, for through drive. Without through drive.

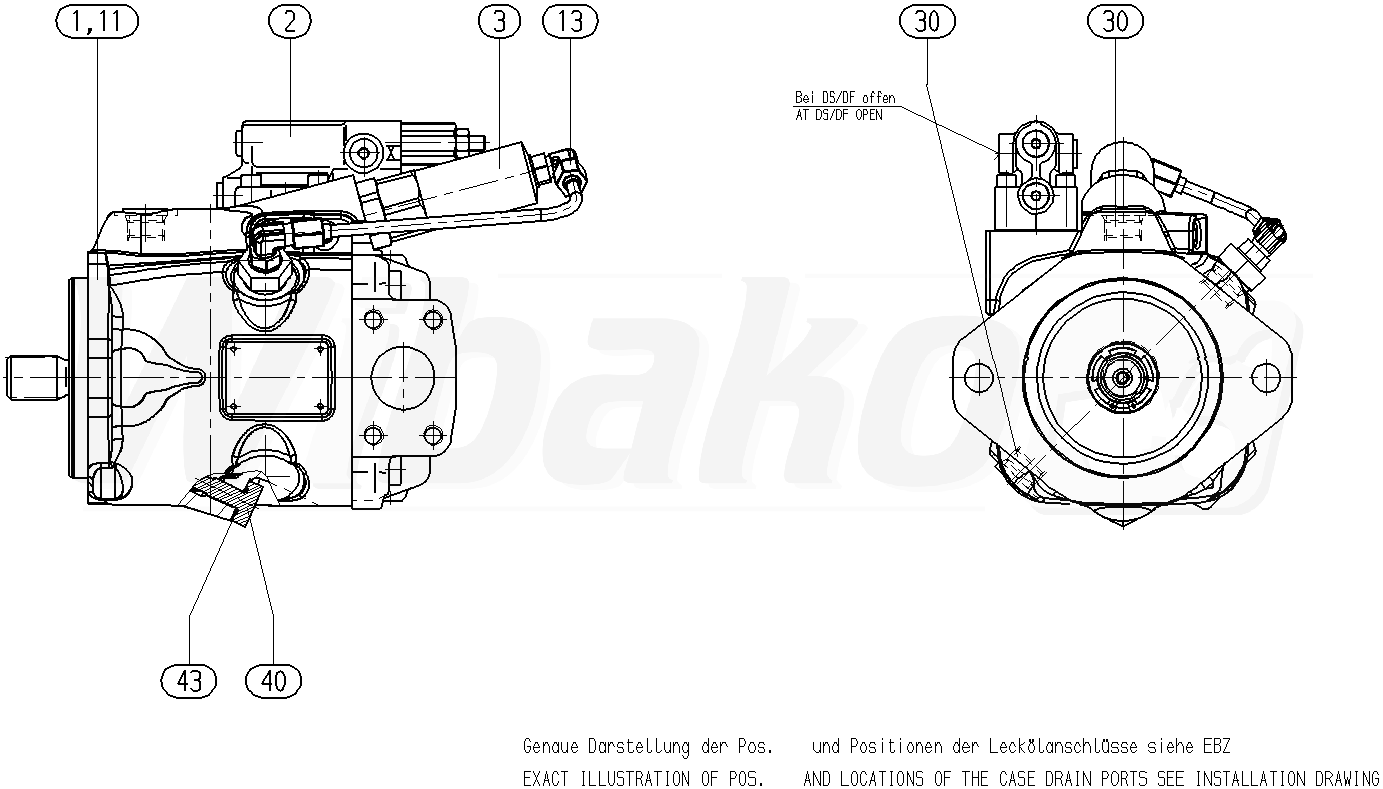

The above diagrams belong to Rexroth www.boschrexroth.com
