A A10V O 45 DFLR/31L-PSC62N00 (R910937605)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 45 cm3. Pressure-flow power control. Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518 Working ports UNF. Fastening thread UNF; lateral top bottom, for through drive. Without through drive.

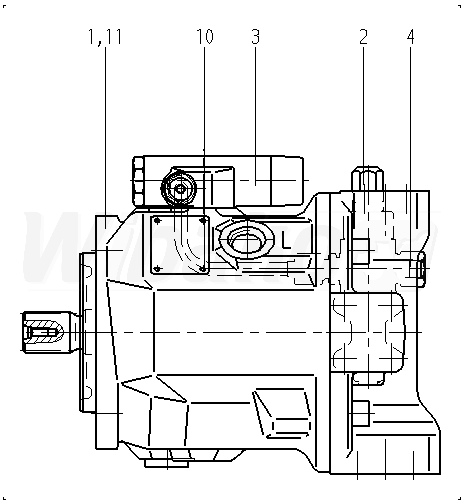

The above diagrams belong to Rexroth www.boschrexroth.com
