AA10VO45DFLR/31R-PSC62N00-MESSE (R910916804)

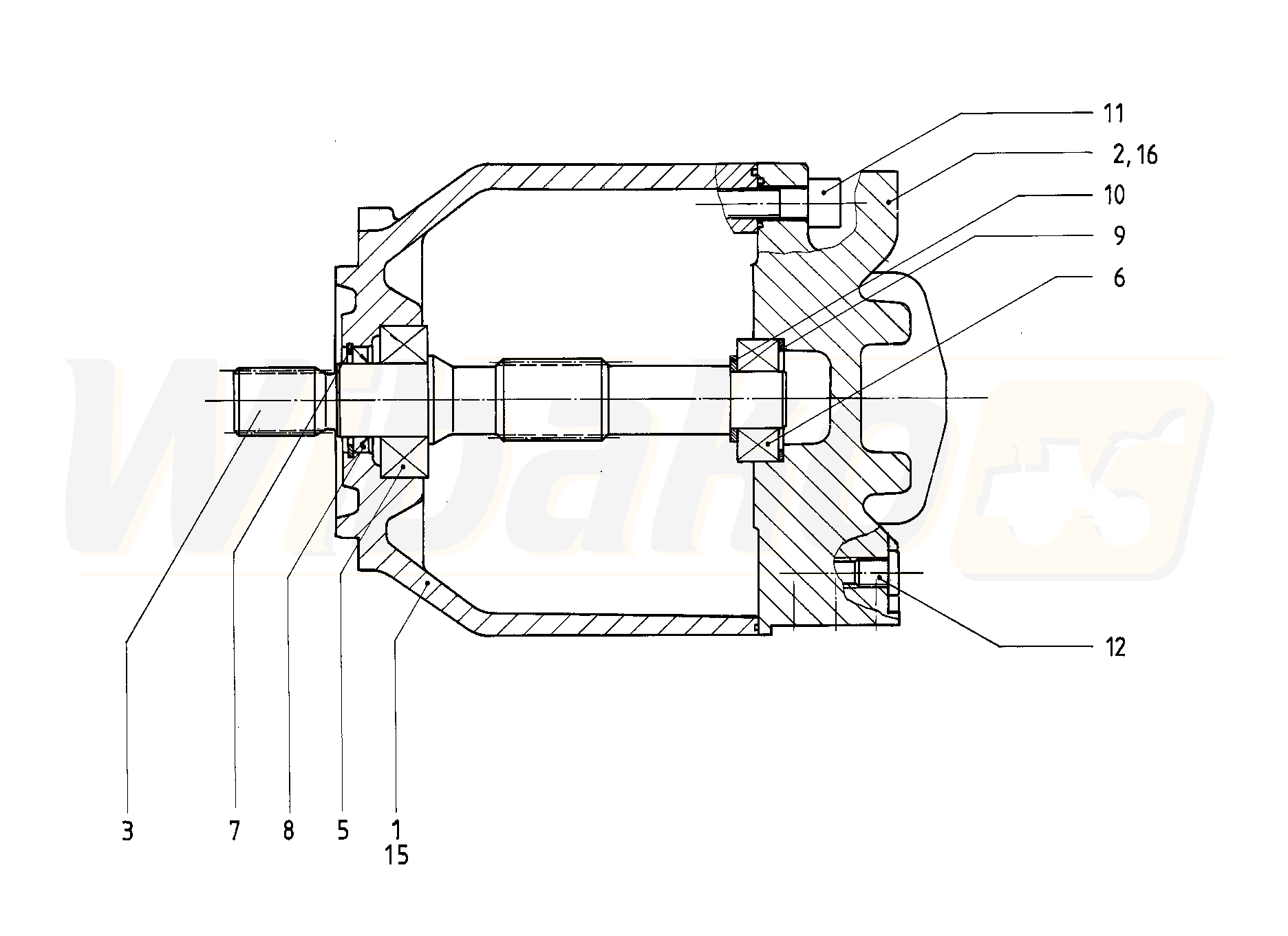

BASE UNIT (110994)

BASE UNIT
(110994)


1

PUMP HOUSING
(13218)


2

CONNECTION PLATE
(20085)


3

DRIVE SHAFT
(110995)


5

TAPERED-ROLLER BEARING
(13223)


6

TAPERED-ROLLER BEARING
(13224)


7

RETAINING RING
(13229)


8

SHAFT SEALING RING
(13226)


10

ADJUSTMENT SHIM
(13222)


11

SOCKET HEAD CAP SCREW
(13230)


12

SCREW PLUG
(10190)


15

SCREW PLUG
(11369)


16

DOUBLE BREAK-OFF PLUG
(18990)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
