AA10VO45DFLR/31R-PSC62N00-SO923 (R910995589)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 45 cm3. Pressure-flow power control. Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518 Working ports UNF. Fastening thread UNF; lateral top bottom, for through drive. Without through drive.

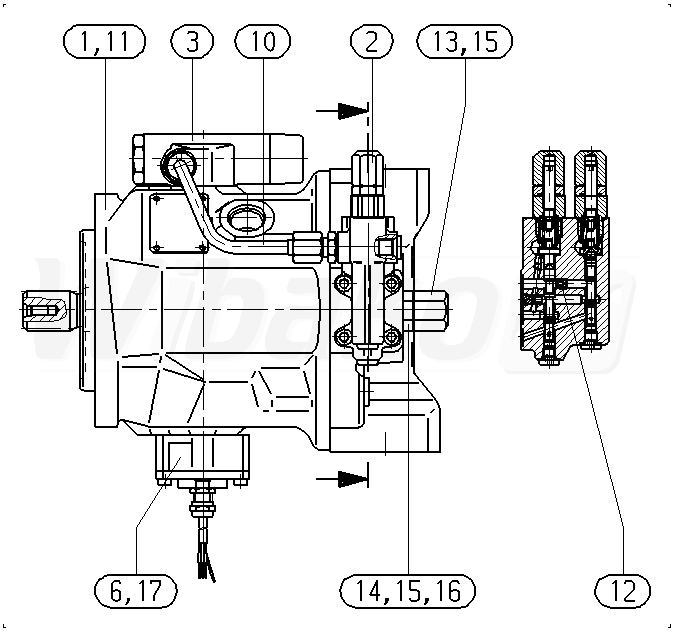

1

BASE UNIT
(111011)

Group »


2

CONTROL VALVE
(57816)

Group »


3

CONTROL VALVE
(13212)

Group »


6

ASSEMBLY KIT
(20567)


10

PIPING
(13215)

Group »


11

POWER DIAGRAM
(110594)


12

NOZZLE
(13923)


13

CAP NUT
(21037)


14

SCREW PLUG
(11371)


14

NUT
(18270)


15

O-RING
(13992)


16

SETSCREW
(111012)


17

COUNTERSUNK-HEAD SCREW
(106535)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
