A A10V O 45 DFLR/31R-PUC62N00 -S1268 (R902449591)

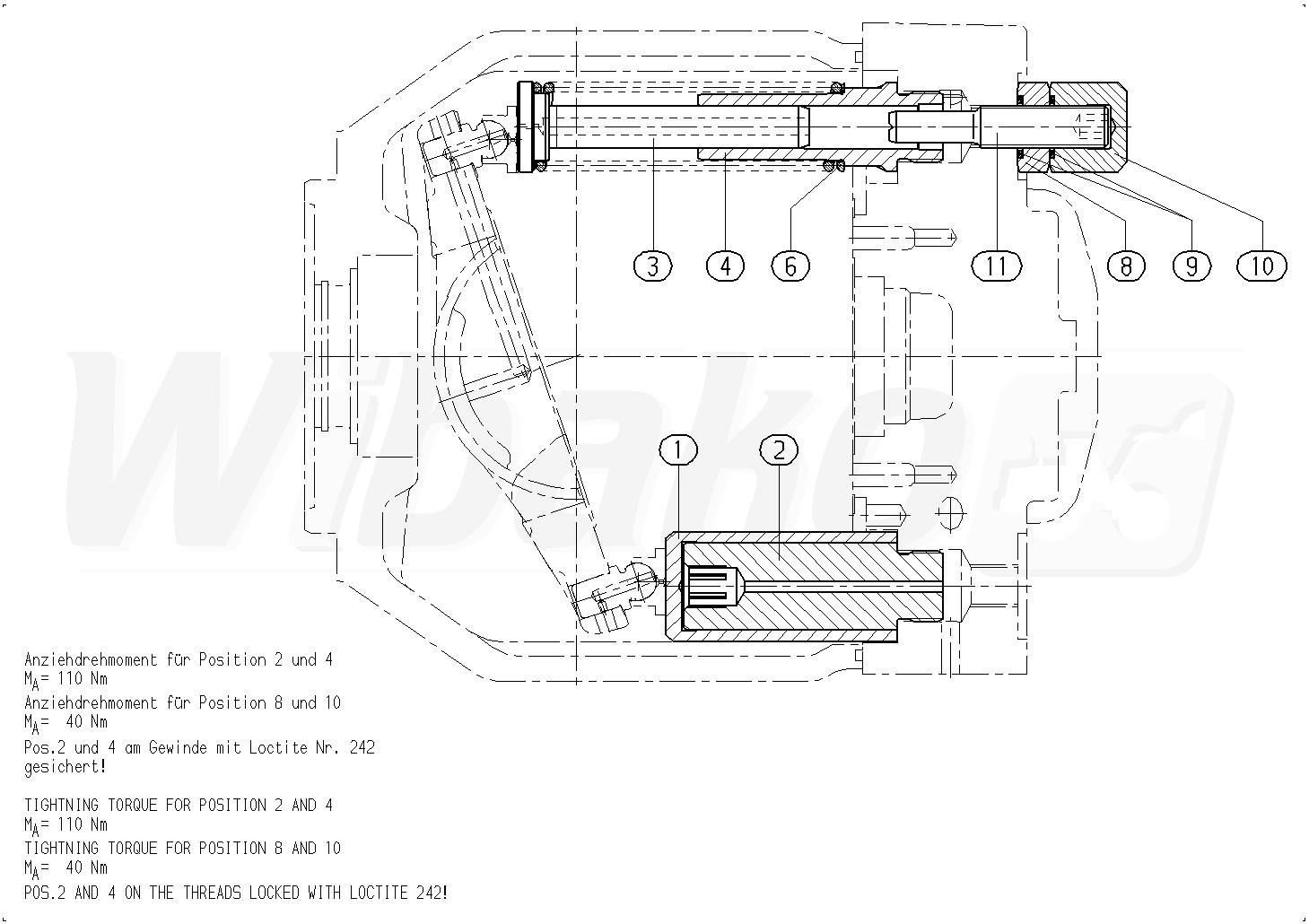

ADJUSTING PIECE (111031)

ADJUSTING PIECE
(111031)


1

ADJUSTING PISTON
(110558)


2

PISTON GUIDE
(111032)


3

OPPOSED PISTON
(13240)


4

PISTON GUIDE
(110560)


6

COMPRESSION SPRING
(110561)


11

STOP SCREW
(110824)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
