A A10V O 45 DFLR/31R-VSC11N00 -SO901 (R902416516)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 45 cm3. Pressure-flow power control. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; rear not for through drive. Without through drive.

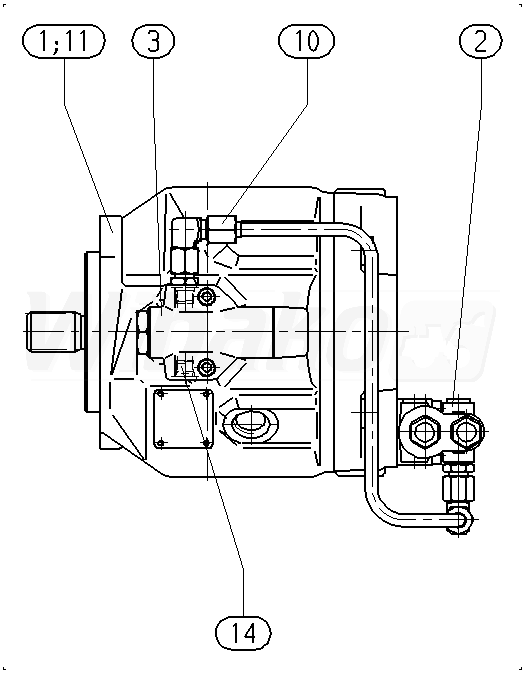

The above diagrams belong to Rexroth www.boschrexroth.com
