A A10V O 45 DFLR/31R-VUC62H00 -S1868 (R902437481)
Axial piston variable pump , swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 10 cm3. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a, reduced diameter, limited suitability for through drive. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518 Working ports UNF. Fastening thread UNF; lateral top bottom, for through drive.

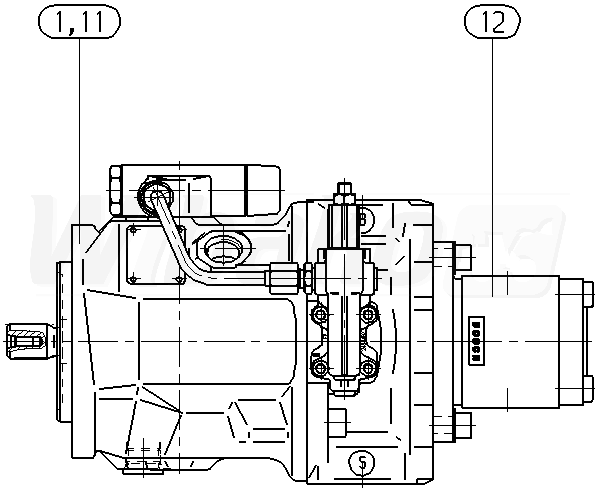

The above diagrams belong to Rexroth www.boschrexroth.com
