A A10V O 45 DFR1/31R-PSC62K04 -SO510 (R902400326)

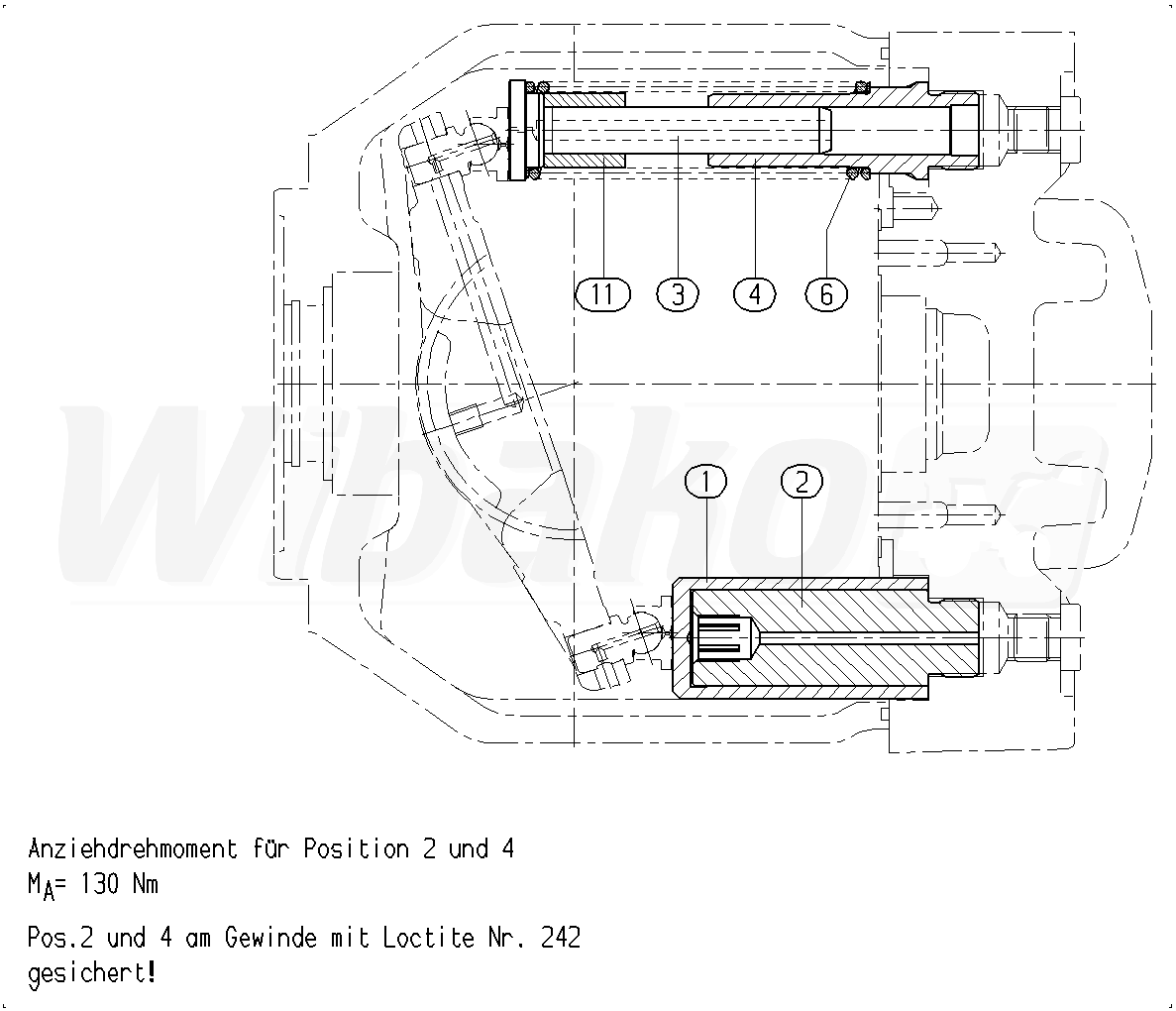

ADJUSTING PIECE (112068)

ADJUSTING PIECE
(112068)


1

ADJUSTING PISTON
(110558)


2

PISTON GUIDE
(111032)


3

OPPOSED PISTON
(13240)


4

PISTON GUIDE
(110560)


6

COMPRESSION SPRING
(110561)


11

SIDE MARKER RING
(112069)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
