A A10V O 45 DFR1/52R-VSC12N00 -SO526 (R902472286)

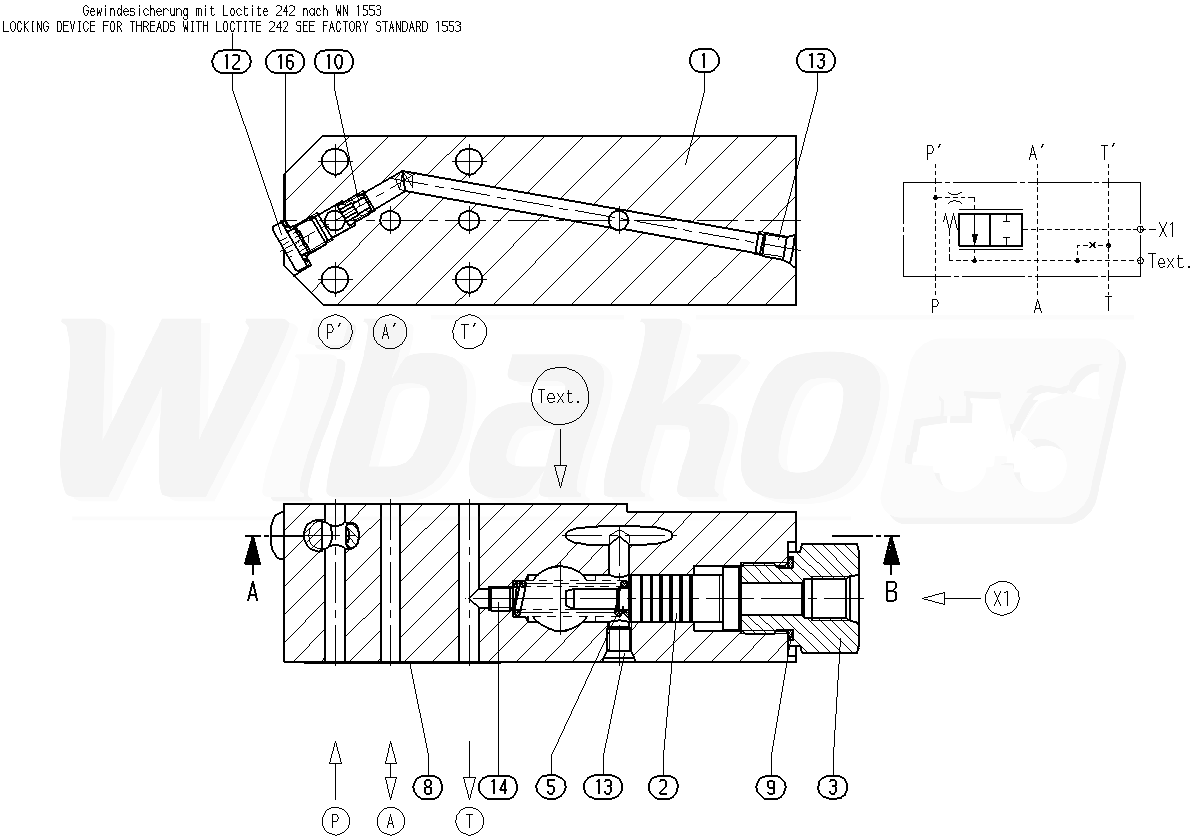

FLUSHING VALVE (112610)

FLUSHING VALVE
(112610)


1

FLUSHING VALVE HOUSING
(112611)


2

FLUSHING PISTON
(105298)


3

REDUCTION THREADED JOINT
(105299)


5

COMPRESSION SPRING
(105300)


8

SEAL
(10001)


9

SEAL RING
(15642)


10

NOZZLE
(99704)


12

SCREW PLUG
(11918)


13

DOUBLE BREAK-OFF PLUG
(18990)


14

SETSCREW
(15619)


16

SEAL RING
(10991)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
