A A10V O 45 DG /31R-PUC12N00 -SO136 (R902433709)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 45 cm3. Two-point control, direct operated. Drive splined shaft ANSI B92.1a, reduced diameter, limited suitability for through drive. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; lateral top bottom for through drive. Without through drive.

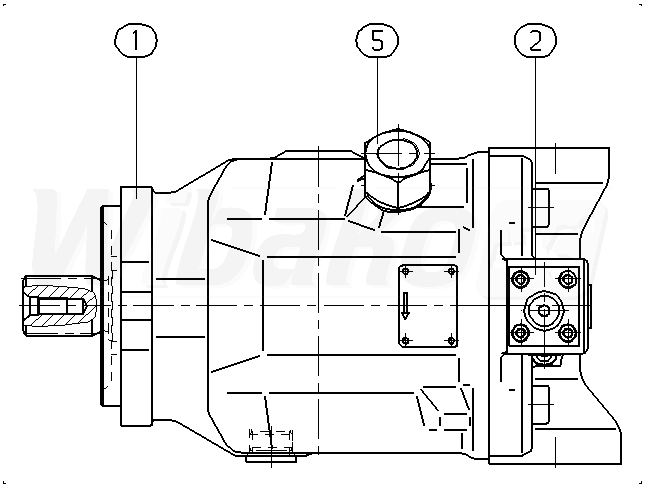

The above diagrams belong to Rexroth www.boschrexroth.com
