A A10V O 45 FHD /31R-VSC62K04 -SO105 (R910962588)
Axial piston variable pump , swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 10 cm3. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518 Working ports UNF. Fastening thread UNF; lateral top bottom, for through drive. Through drive. Flange ISO 3019-1 101-2 (B) . Hub for splined shaft 1 in 15T 16/32DP.

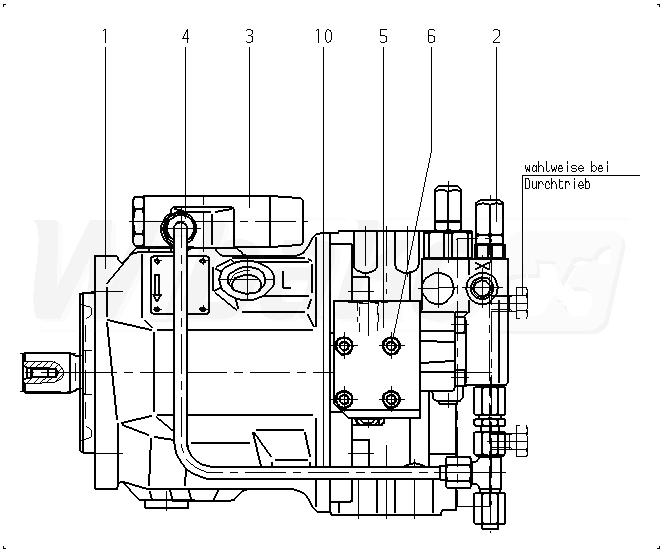

The above diagrams belong to Rexroth www.boschrexroth.com
