A A10V O 45ED 71 /52R-VSC11N00P -S2890 (R902479144)
Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 52. Geometric displacement 45 cm3. Pressure controller, electric, negative control, U = 12 V. Directions of rotation: clockwise (viewed on drive shaft). Seal: FKM (fluoroelastomer). Splined shaft ISO 3019-1, standard. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports, fastening thread metric, rear, not for through drive. Without through drive. DEUTSCH - molded connector, 2-pin, without suppressor diode (for electric control).

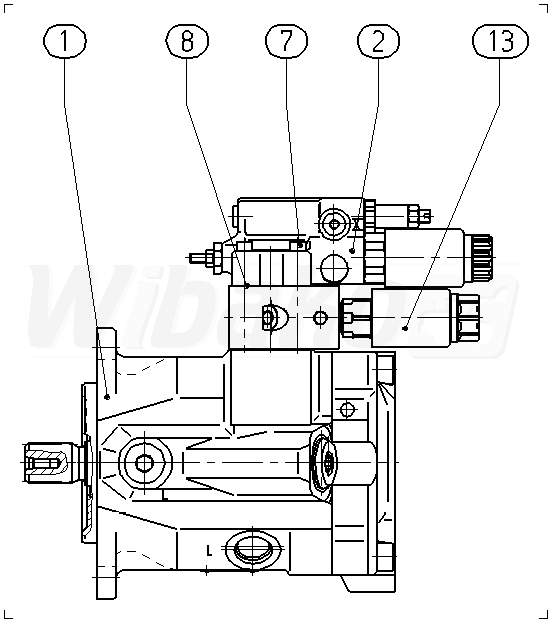

The above diagrams belong to Rexroth www.boschrexroth.com
