AA10VO45ED71/31R-VUC61N00T (R902418218)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 45 cm3. Pressure controller with pressure cut-of, electrical, negative control U = 12 V. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a, reduced diameter, limited suitability for through drive. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518 Working ports UNF. Fastening thread UNF; rear, not for through drive. Without through drive.

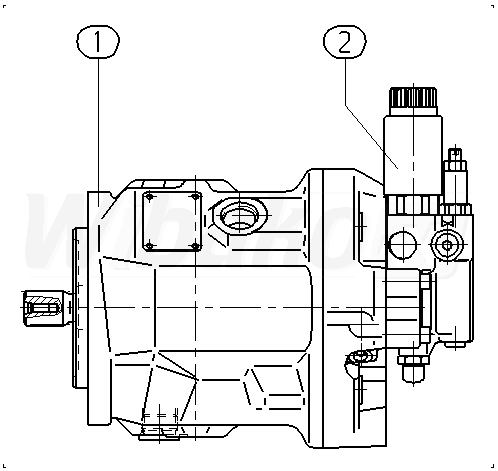

The above diagrams belong to Rexroth www.boschrexroth.com
