AA10VO45EP1DS/31R-VSC62N00P-SO511 (R902480043)

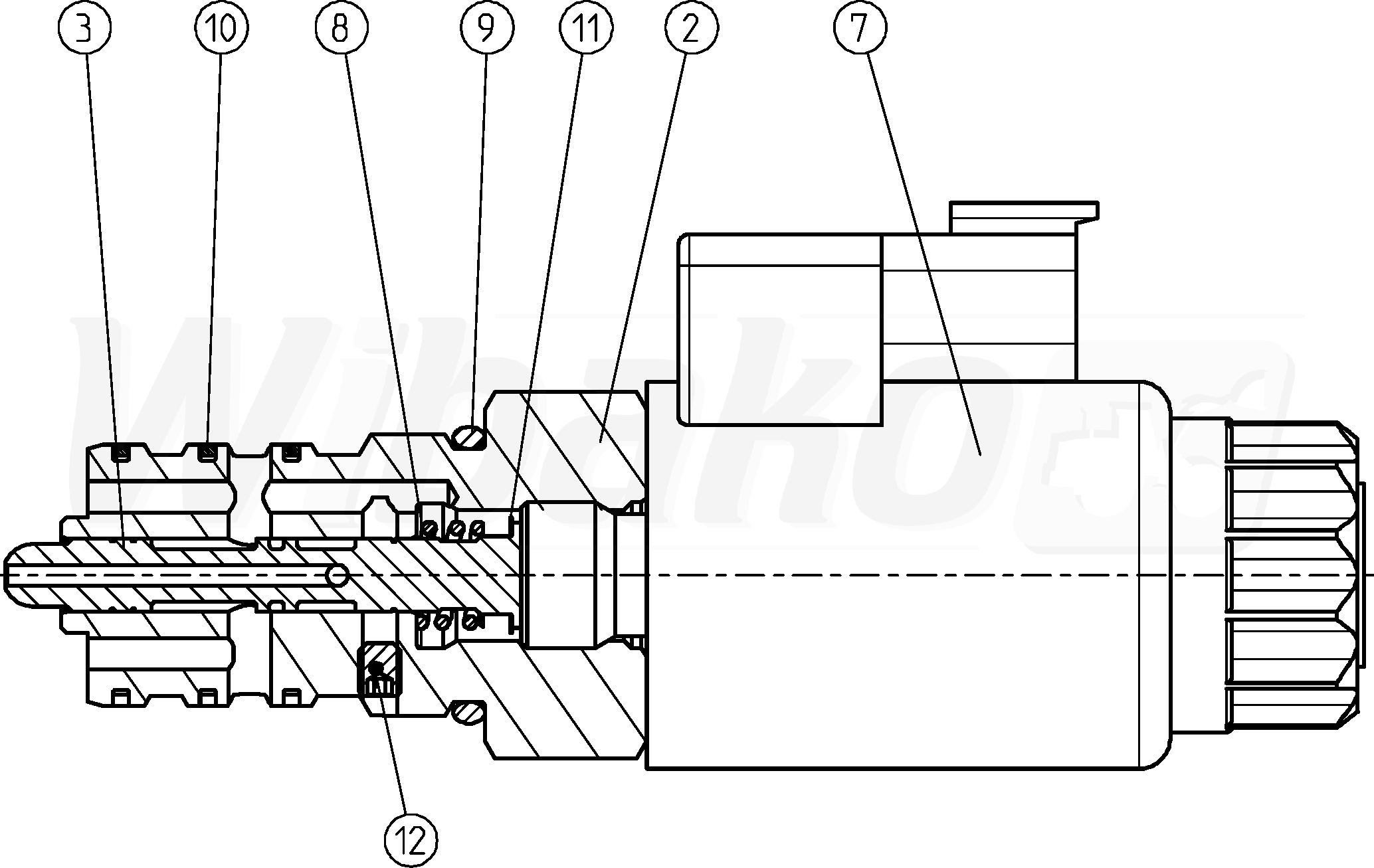

CONTROL VALVE (113980)

CONTROL VALVE
(113980)


2

PISTON GUIDE
(83754)


3

VALVE SPOOL
(16467)


7

PROPORTIONAL SOLENOID
(16231)


8

COMPRESSION SPRING
(16232)


9

O-RING
(16233)


10

R-RING
(16234)


11

ADJUSTMENT SHIM
(16235)


12

SETSCREW
(15620)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
