AA10VO45LA9DS/53R-VUC62K01'BASIC' (R902451864)
Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 45 cm3. Power controller with pressure cut-of , flow control X-T plugged, hydraulic with flushing function, beginning of control from 141 to 230 bar. Seal: FKM (fluoroelastomer). Splined shaft ISO 3019-1, reduced diameter, limited suitability for through drive. Mounting flange ISO 3019-1 (SAE) 2-hole.

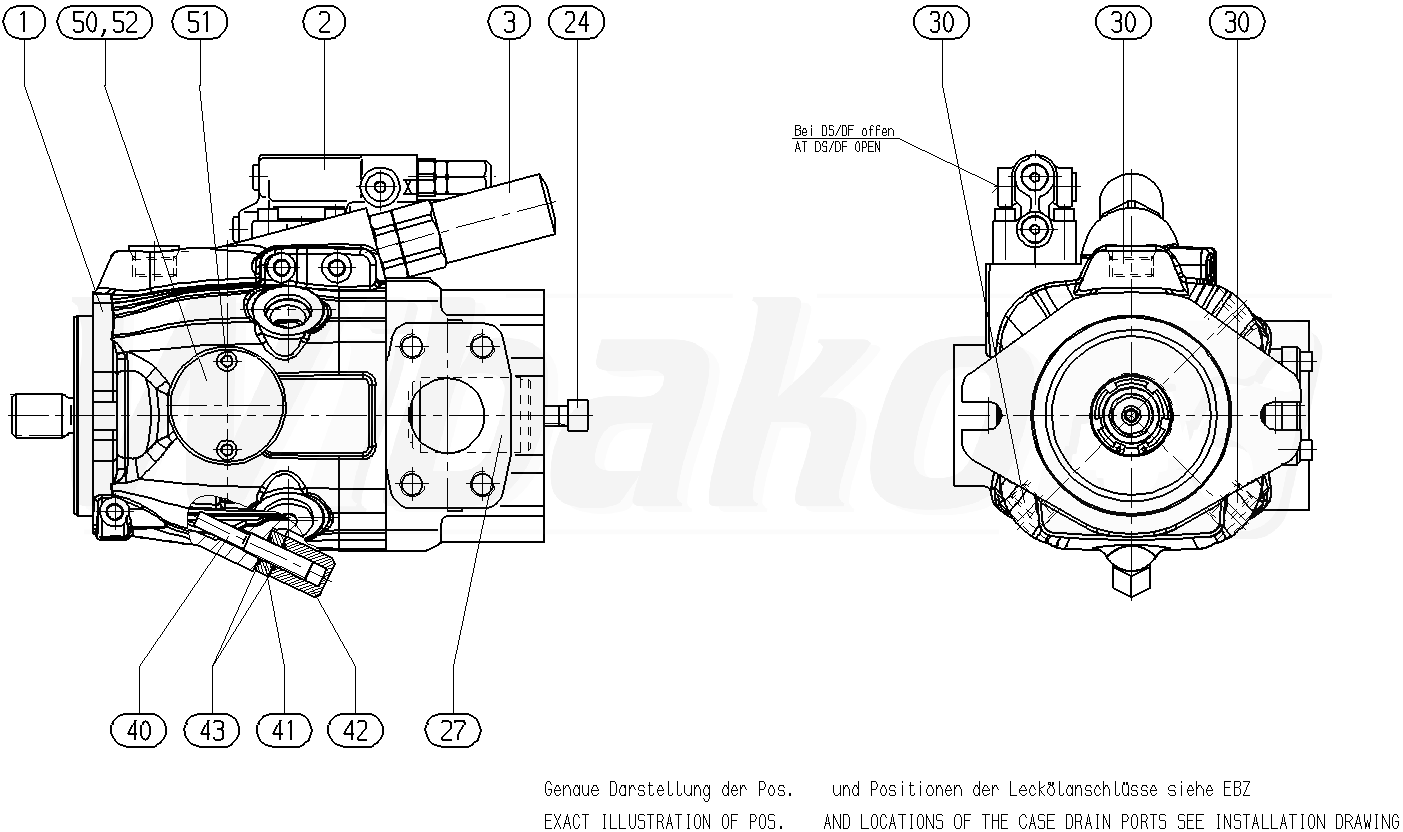

The above diagrams belong to Rexroth www.boschrexroth.com
