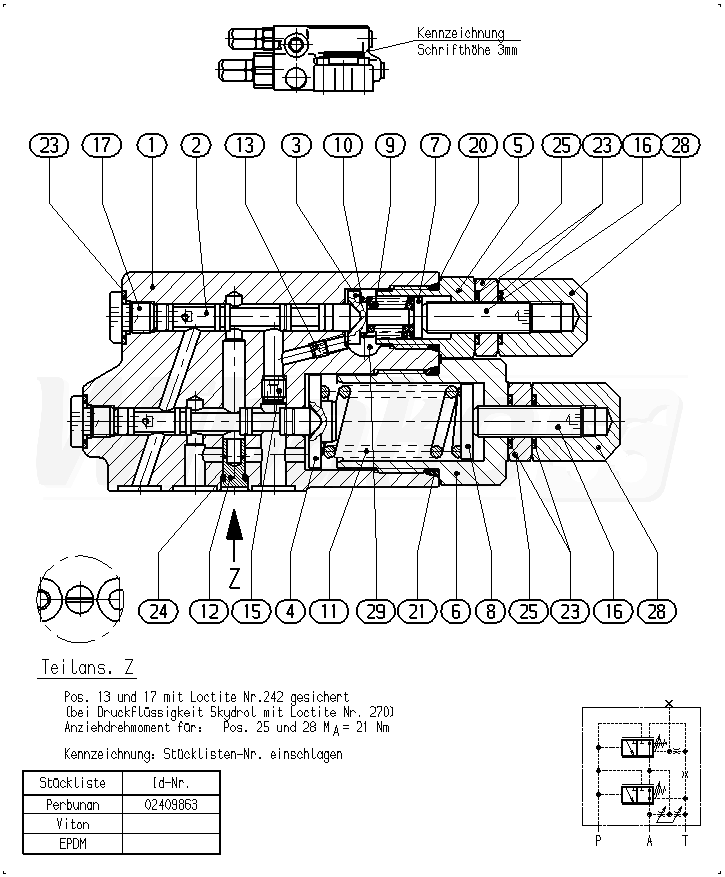

AA10VO60DR/52L-PSD12N00-SO275 (R902409862)
CONTROL VALVE (115163)

CONTROL VALVE
(115163)


1

VALVE HOUSING
(115164)


2

VALVE SPOOL
(13250)


3

SPRING DISK
(11910)


4

SPRING DISK
(54701)


5

SCREW PLUG
(54702)


6

SCREW PLUG
(109116)


7

WASHER
(11913)


8

WASHER
(109117)


9

COMPRESSION SPRING
(11914)


10

COMPRESSION SPRING
(11915)


11

COMPRESSION SPRING
(17238)


12

ORIFICE
(46696)


13

NOZZLE
(14546)


15

NOZZLE
(13320)


16

SETSCREW
(54704)


17

SCREW PLUG
(11918)


20

O-RING
(13992)


21

O-RING
(13993)


23

BONDED SEAL RING
(13991)


24

O-RING
(109118)


25

NUT
(14286)


28

CAP NUT
(14287)


29

SCREW PLUG
(11371)
