A6VM107EP2DX/63W-VAB027IHB-S (R902060429)

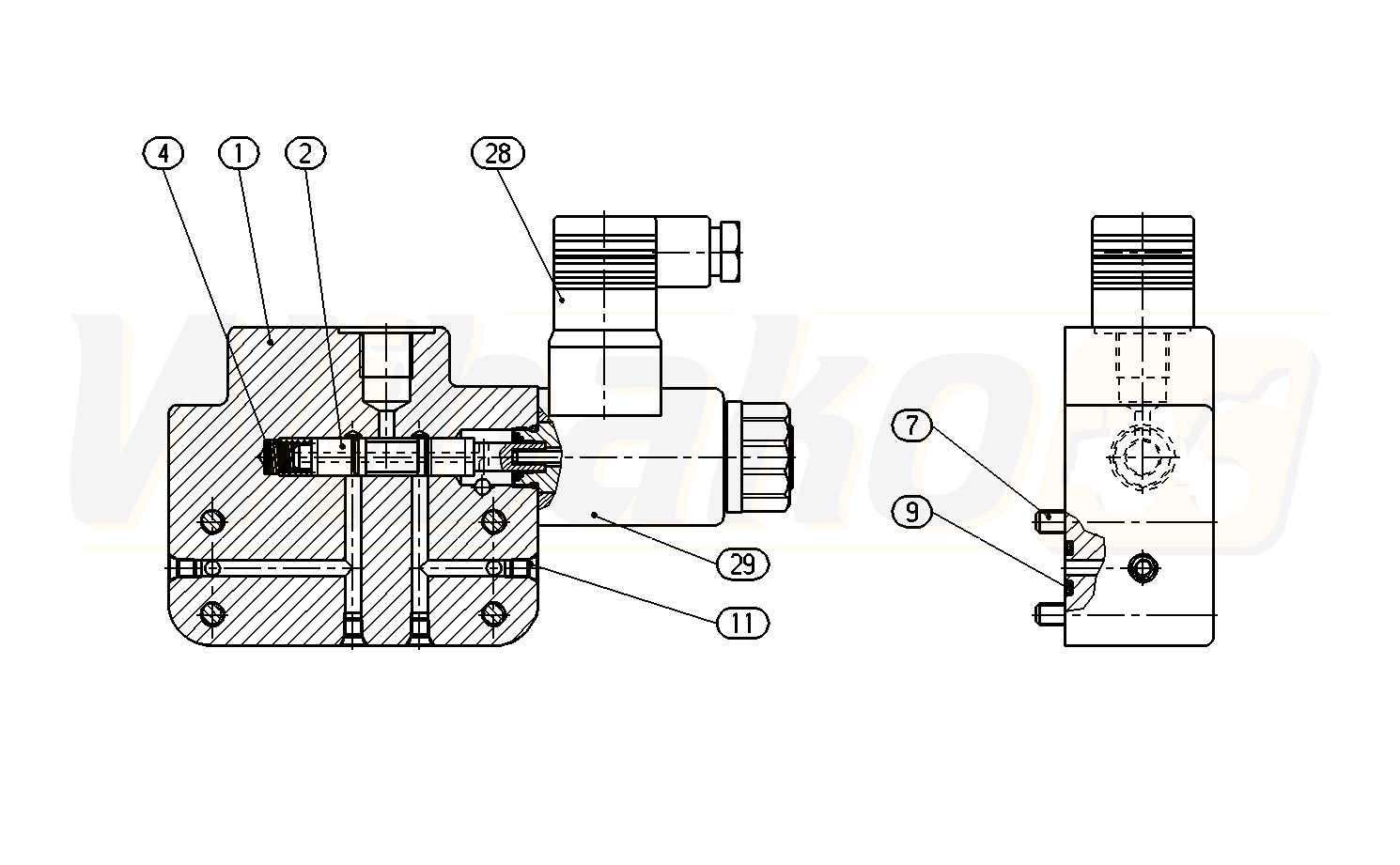

DIRECTIONAL-CONTROL VALVE (19563)

DIRECTIONAL-CONTROL VALVE
(19563)


1

VALVE HOUSING
(19564)

Group »


2

CONTROL PISTON
(12477)


4

COMPRESSION SPRING
(12479)


7

SOCKET HEAD CAP SCREW
(14633)


9

O-RING
(11721)


11

DOUBLE BREAK-OFF PLUG


28

PLUG-IN CONNECTOR
(10519)


29

SWITCHING SOLENOID
(13193)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
