AA10VO63DRG/53R-VSC62N'980392*G*& (R902482070)

Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 63 cm3. Pressure controller, with pressure cut-of, hydraulic, remotely controlled. Seal: FKM (fluoroelastomer). Splined shaft ISO 3019-1, standard. Mounting flange ISO 3019-1 (SAE) 2-hole.
1


(115509)

Group »


1

BASE UNIT
(115509)

Group »


2


(15470)

Group »


2

CONTROL VALVE
(15470)

Group »


3

CONTROL
(32062)

Group »


3


(32062)

Group »


30

SCREW PLUG
(13231)


30


(13231)


40


(32178)


40

STOP SCREW
(32178)


43


(15835)


43

O-RING
(15835)


50


(108640)

Group »


50

SWIVEL ANGLE SENSOR
(108640)

Group »



Return

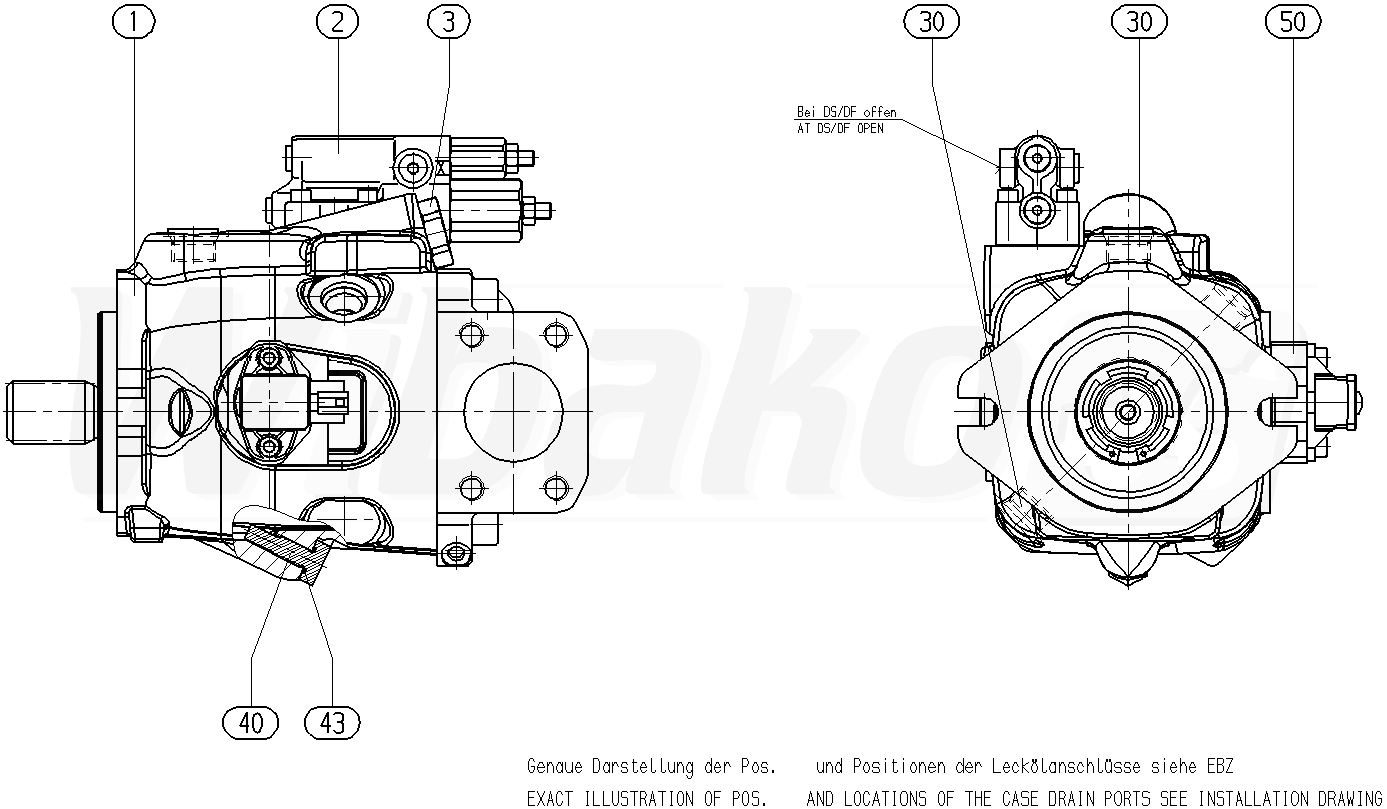

The above diagrams belong to Rexroth www.boschrexroth.com
