A A10V O 63 DRS /53L-VWC62H00 -SO 97 (R902501825)
Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 63 cm3. Pressure controller with flow controller, hydraulic, X-T plugged with flushing function. Seal: FKM (fluoroelastomer). Splined shaft ISO 3019-1, for higher torque only conditionally suitable for mounting with through drive. Mounting flange ISO 3019-1 (SAE) 2-hole.

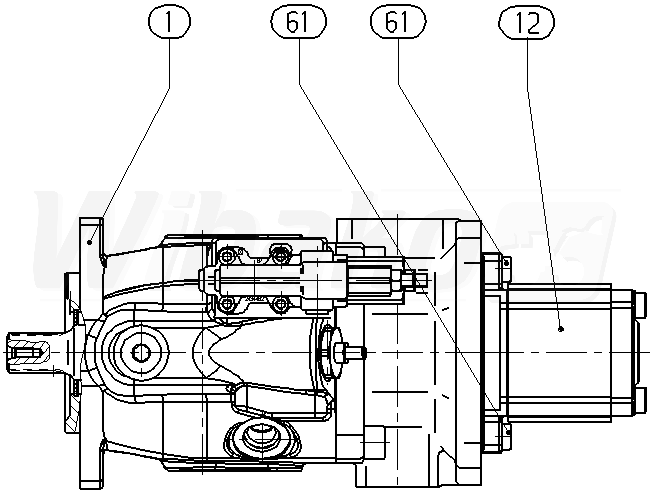

The above diagrams belong to Rexroth www.boschrexroth.com
