A A10V O 63ED 72/53L-VSC12L40P (R902481051)
Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 63 cm3. Pressure controller, electric, negative control U = 24 V. Seal: FKM (fluoroelastomer). Splined shaft ISO 3019-1, standard. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports, fastening thread metric, laterally opposite, for through drive.

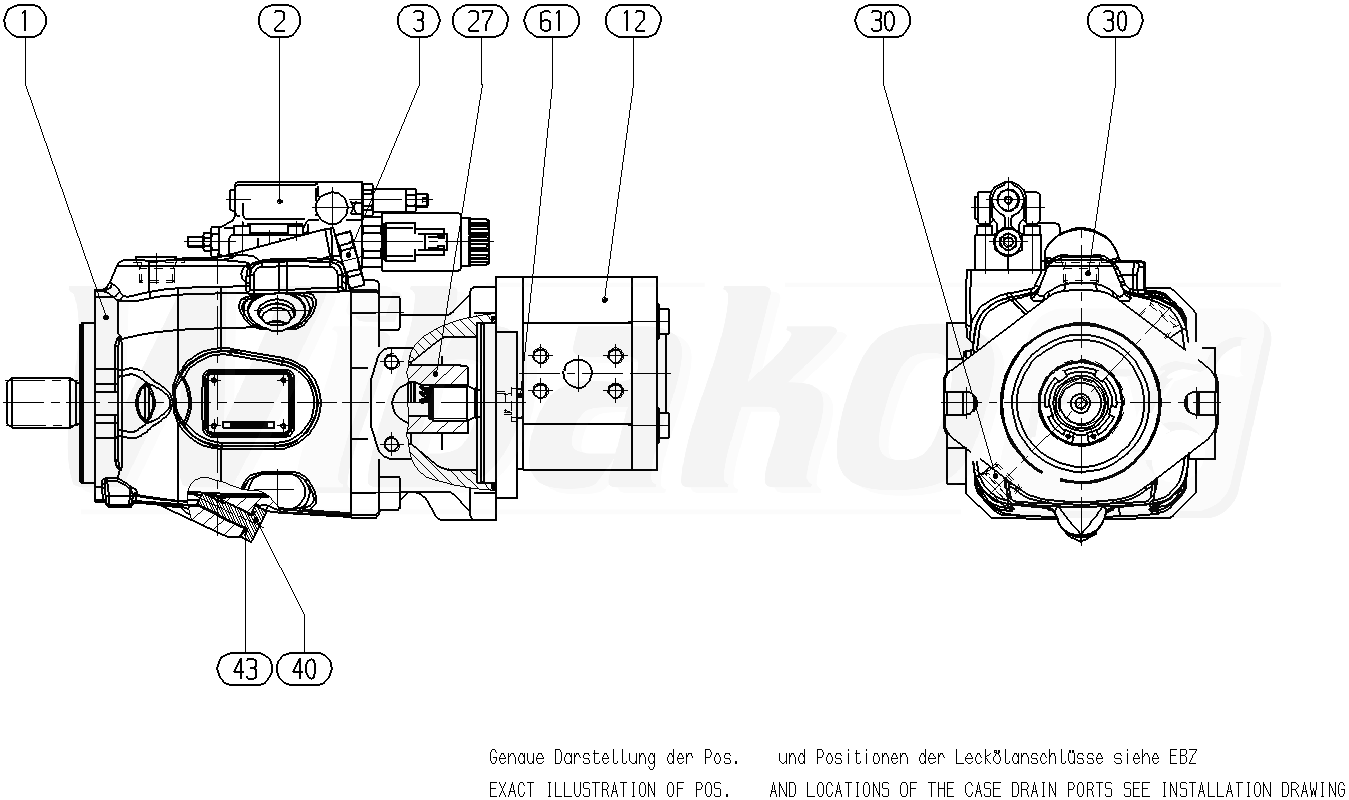

The above diagrams belong to Rexroth www.boschrexroth.com
