AA10VO63EK1DS/53L-VWC62L10P-S2787 (R902476123)
Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 63 cm3. Electro-proportional control (positive control), pressure and flow control with controller cut-off (load sensing), X-T plugged, U = 12 V. Seal: FKM (fluoroelastomer). Splined shaft ISO 3019-1, for higher torque only conditionally suitable for mounting with through drive. Mounting flange ISO 3019-1 (SAE) 2-hole.

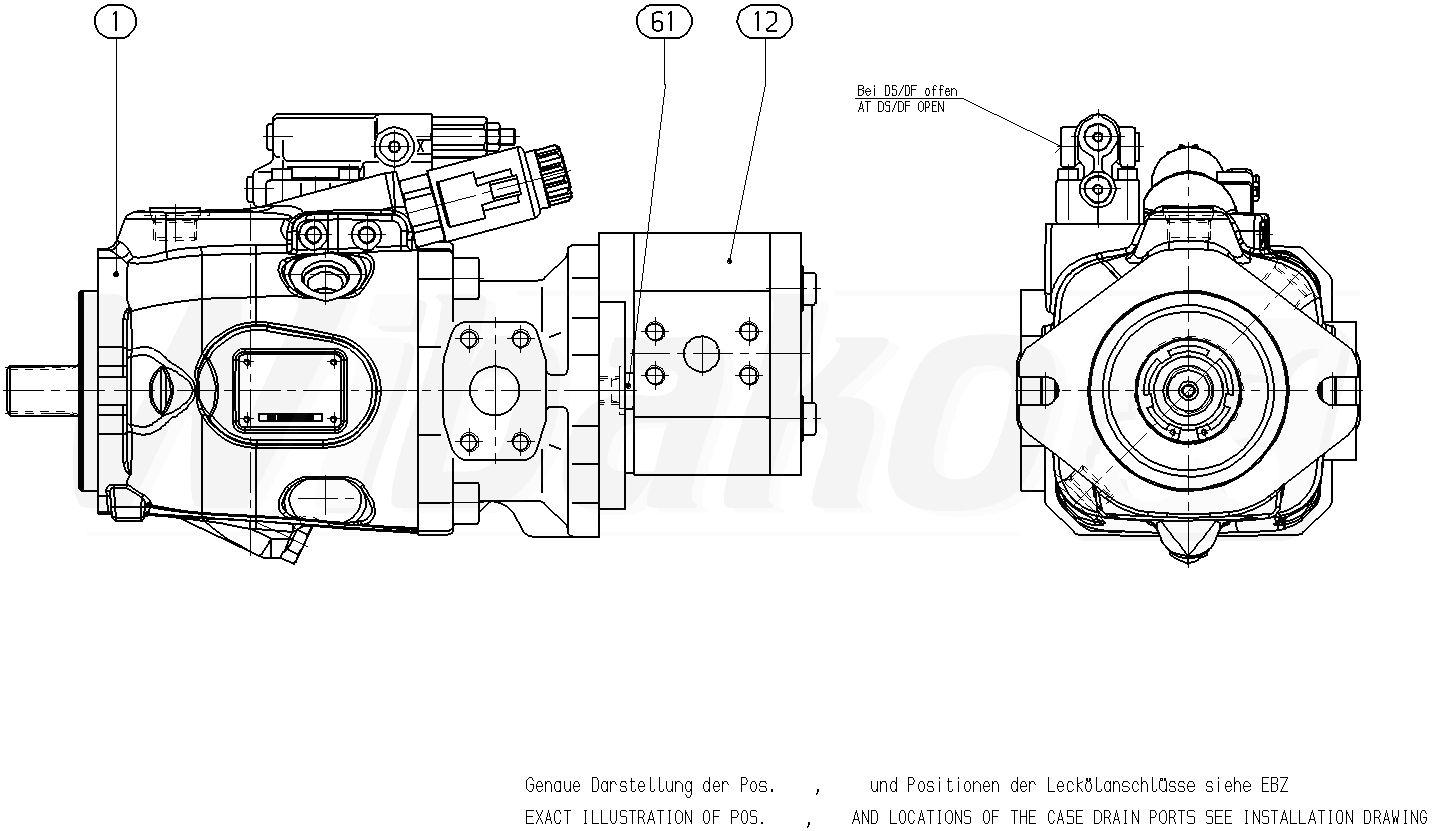

The above diagrams belong to Rexroth www.boschrexroth.com
