A A10V O 63LA8DS/53R-VSC62H00 -SO928 (R902463173)
Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 63 cm3. Power controller with pressure cut-of , flow control X-T plugged, hydraulic with flushing function, beginning of control from 106 to 140 bar. Seal: FKM (fluoroelastomer). Splined shaft ISO 3019-1, standard. Mounting flange ISO 3019-1 (SAE) 2-hole.

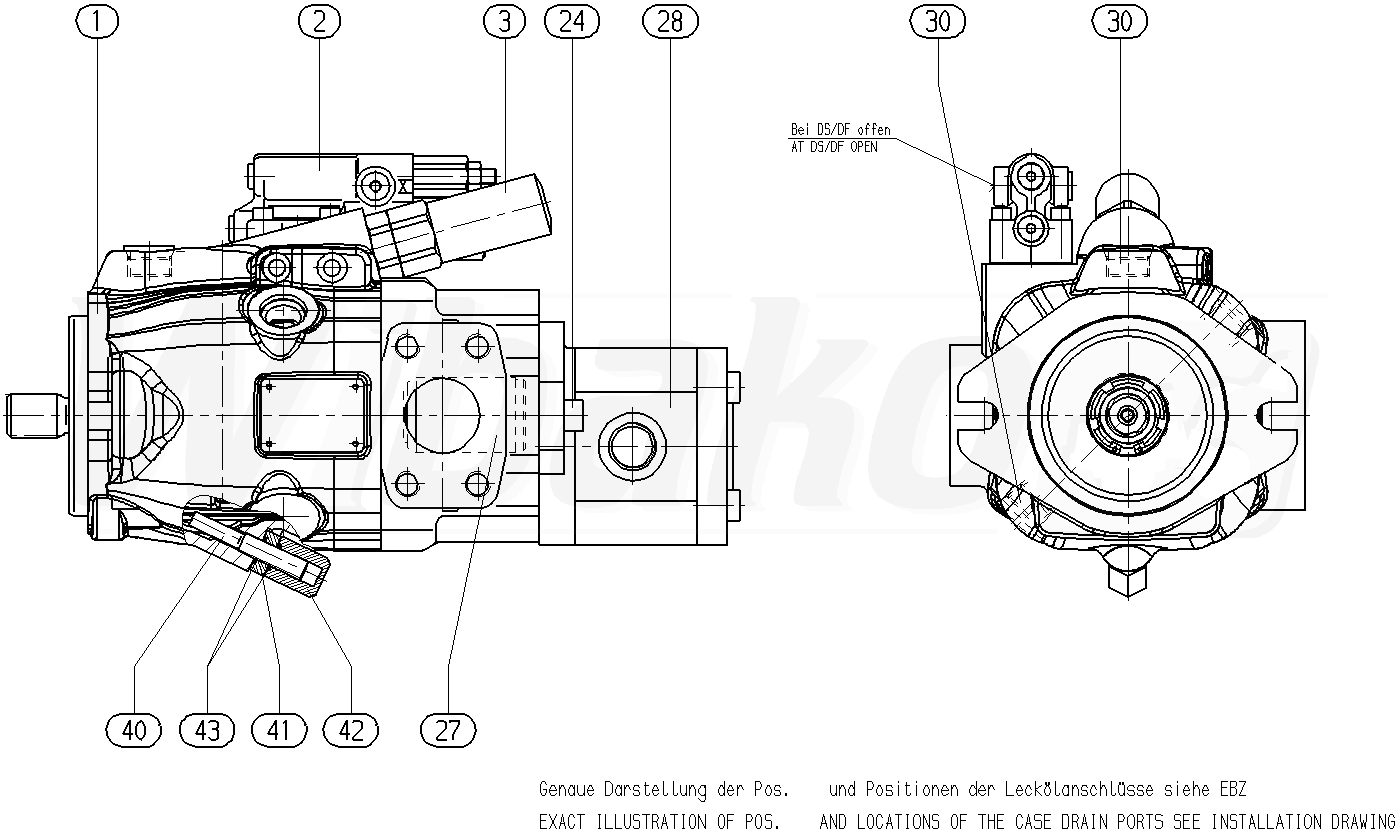

The above diagrams belong to Rexroth www.boschrexroth.com
