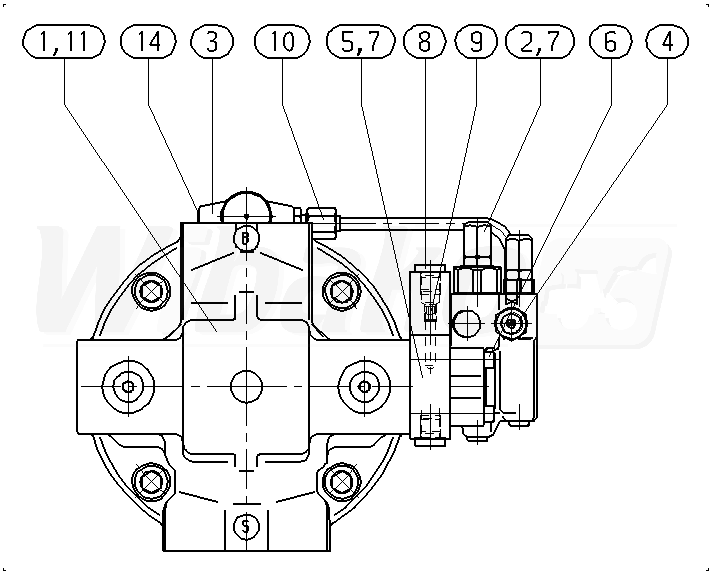

AA10VO71DFLR/31L-PSC12N00-SO338 (R902427387)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 71 cm3. Pressure-flow power control. Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; lateral top bottom for through drive. Without through drive.
1

BASE UNIT
(115945)

Group »


2

CONTROL VALVE
(14677)

Group »


3

CONTROL VALVE
(13212)

Group »


4

ADAPTER
(15740)

Group »


5

INTERMEDIATE PLATE
(16350)


6

SOCKET HEAD CAP SCREW
(16351)


7

O-RING
(16352)


8

SCREW PLUG
(16353)


9

NOZZLE
(20107)


10

PIPING
(115961)

Group »


11

POWER DIAGRAM
(115962)


14

SCREW PLUG
(11371)


15

SEAL
(10001)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
