AA10VO71DFLR/31L-VSC11N00-SO504 (R910966531)

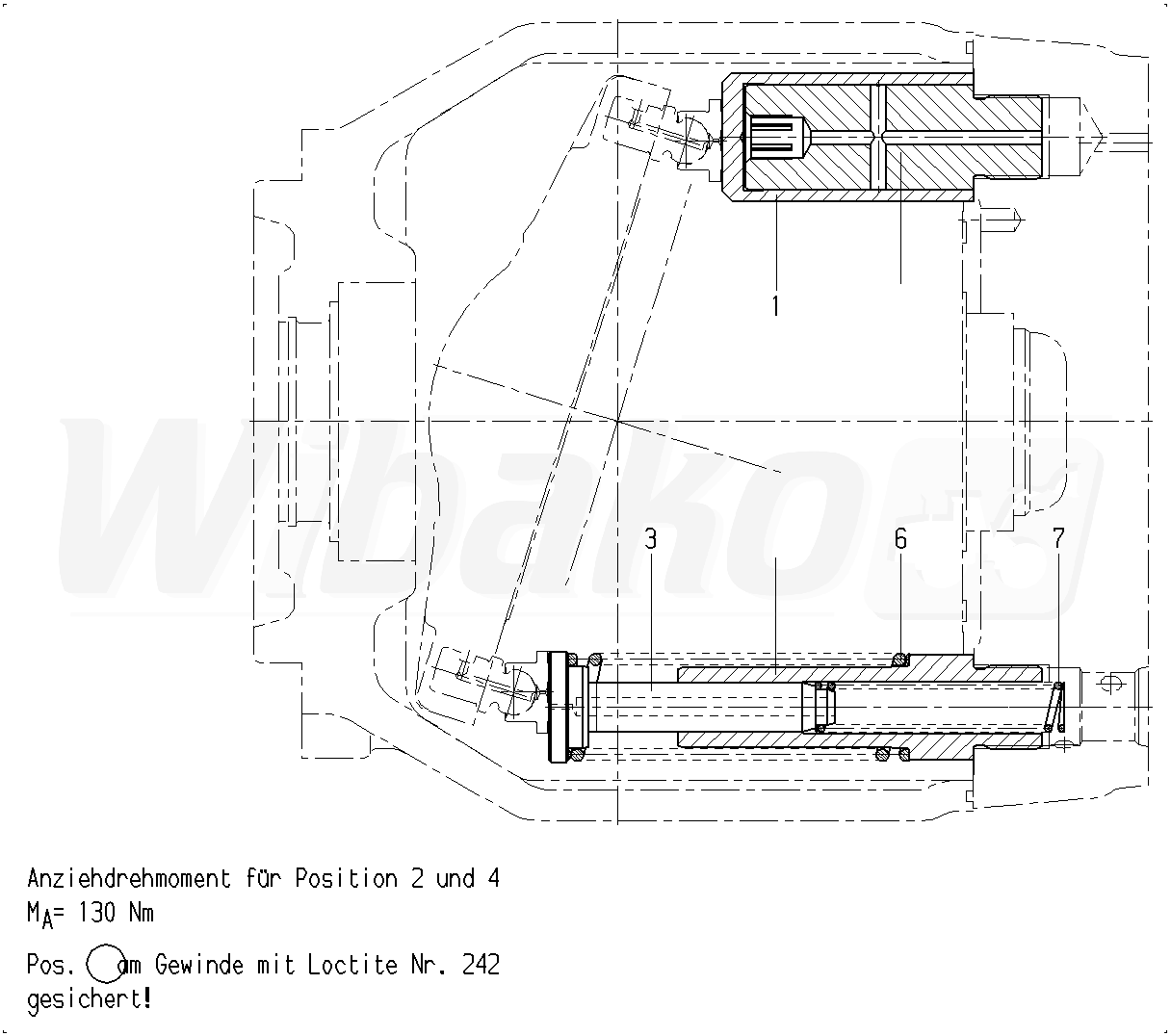

ADJUSTING PIECE (116080)

ADJUSTING PIECE
(116080)


1

ADJUSTING PISTON
(13915)


2

PISTON GUIDE
(13916)


3

OPPOSED PISTON
(54723)


4

PISTON GUIDE
(116083)


6

COMPRESSION SPRING
(13919)


7

COMPRESSION SPRING
(116084)
