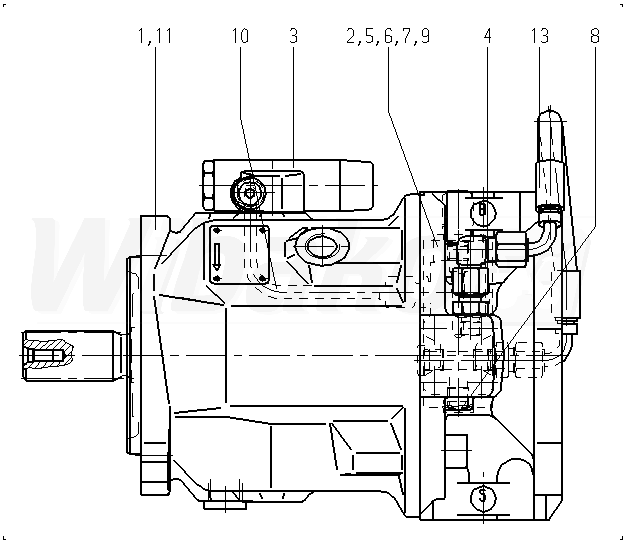

A A10V O 71 DFLR/31R-PSC12K07 -SO496 (R910966259)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 71 cm3. Pressure-flow power control. Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; lateral top bottom for through drive. Through drive. Flange ISO 3019-1 127-2 (C). Hub for splined shaft 1 1/4 in 14T 12/24DP .
1

BASE UNIT
(116219)

Group »


2

CONTROL VALVE
(105372)

Group »


3

CONTROL VALVE
(13212)

Group »


4

SCREW PLUG
(11371)


5

INTERMEDIATE PLATE
(116220)


6

SOCKET HEAD CAP SCREW
(13888)


7

O-RING
(16352)


8

SCREW PLUG
(16353)


9

NOZZLE
(20107)


10

PIPING
(116221)

Group »


11

POWER DIAGRAM
(116213)


13

PIPING
(116222)

Group »


14

SEAL
(10001)


60

SAFETY CAP
(13891)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
