AA10VO71DFLR/31R-VSC12N00-S1314 (R902415642)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 71 cm3. Pressure-flow power control. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; lateral top bottom for through drive. Without through drive.

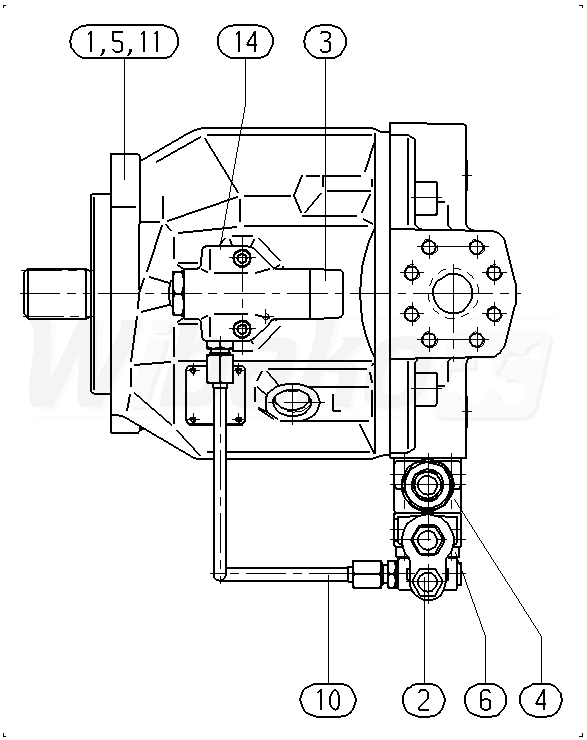

1

BASE UNIT
(116517)

Group »


2

CONTROL VALVE
(105369)

Group »


3

CONTROL VALVE
(13212)

Group »


4

CONTROL VALVE
(13886)

Group »


5

SIDE MARKER RING
(76215)


6

SOCKET HEAD CAP SCREW
(13888)


10

PIPING
(116459)

Group »


11

POWER DIAGRAM
(116518)


14

SCREW PLUG
(11928)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
