AA10VO71DFLR/31R-VSC12N00-S1496 (R902423293)

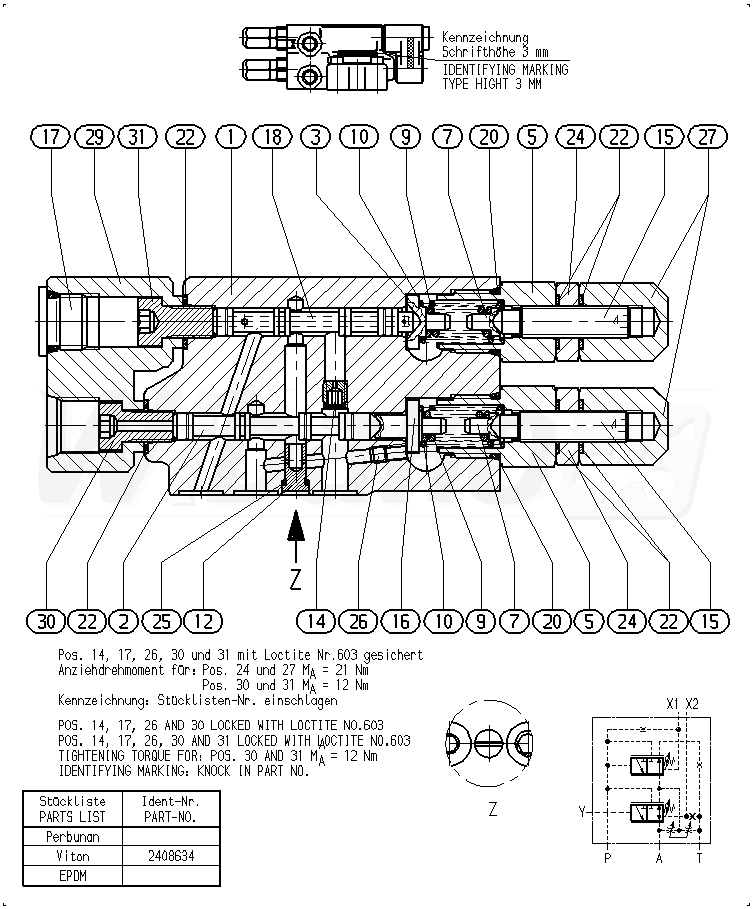

CONTROL VALVE (116523)

CONTROL VALVE
(116523)


1

VALVE HOUSING
(116436)


2

VALVE SPOOL
(17237)


3

SPRING DISK
(107803)


5

SCREW PLUG
(116437)


7

SPRING DISK
(107806)


9

COMPRESSION SPRING
(11914)


10

COMPRESSION SPRING
(11915)


12

ORIFICE
(46696)


14

NOZZLE
(11929)


15

SETSCREW
(14288)


16

SPRING DISK
(19181)


17

SCREW PLUG
(13824)


18

VALVE SPOOL
(13921)


20

O-RING
(11933)


22

BONDED SEAL RING
(11921)


24

NUT
(14286)


25

O-RING
(46697)


26

SETSCREW
(13925)


27

CAP NUT
(14287)


29

DOUBLE ADAPTER
(83833)


30

HOLLOW BOLT
(83835)


31

SCREW
(83837)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
