AA10VO71DFLR/31R-VSC12N00-SO461 (R910962270)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 71 cm3. Pressure-flow power control. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; lateral top bottom for through drive. Without through drive.
1

BASE UNIT
(116540)

Group »


2

CONTROL VALVE
(14677)

Group »


3

CONTROL VALVE
(54716)

Group »


4

ADAPTER
(18034)

Group »


6

SEAL
(10001)


7

SOCKET HEAD CAP SCREW
(10002)


10

PIPING
(54719)

Group »



Return

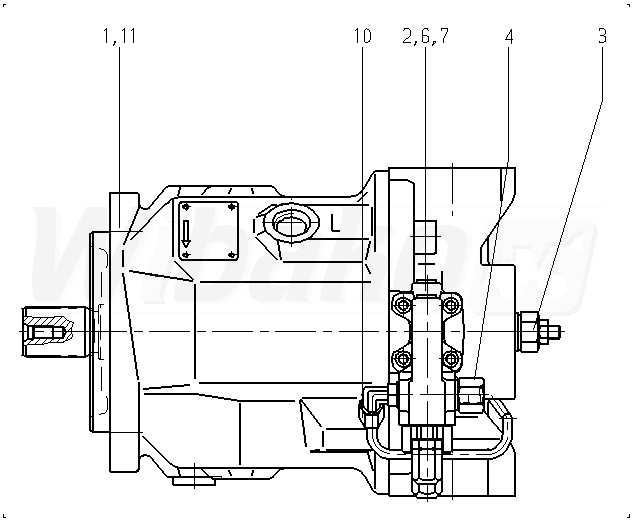

The above diagrams belong to Rexroth www.boschrexroth.com
