A A10V O 71 DG /31L-PRC62K07 (R902434330)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 71 cm3. Two-point control, direct operated. Drive splined shaft ANSI B92.1a for higher input torque. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518 Working ports UNF. Fastening thread UNF; lateral top bottom, for through drive. Through drive. Flange ISO 3019-1 127-2 (C). Hub for splined shaft 1 1/4 in 14T 12/24DP .

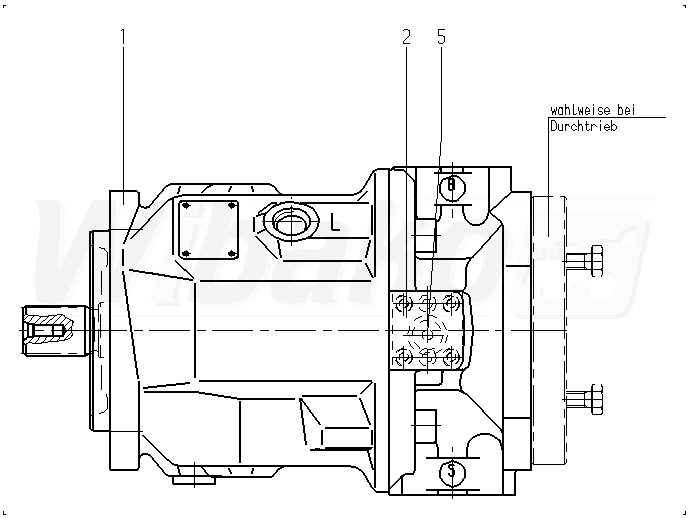

The above diagrams belong to Rexroth www.boschrexroth.com
