A A10V O 71 DRS /32L-VSD11N00 -S2835 (R902478178)
Axial piston variable pump O, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 32. Geometric displacement 71 cm3. Pressure controller with flow controller, hydraulic, X-T plugged with flushing function. Directions of rotation: counter-clockwise (viewed on drive shaft). Seal: FKM (fluoroelastomer). Splined shaft ANSI B92.1a, standard. Mounting flange ISO 3019-1 SAE C; 4-hole. SAE flange ports: rear, metric fastening thread. Without through drive.

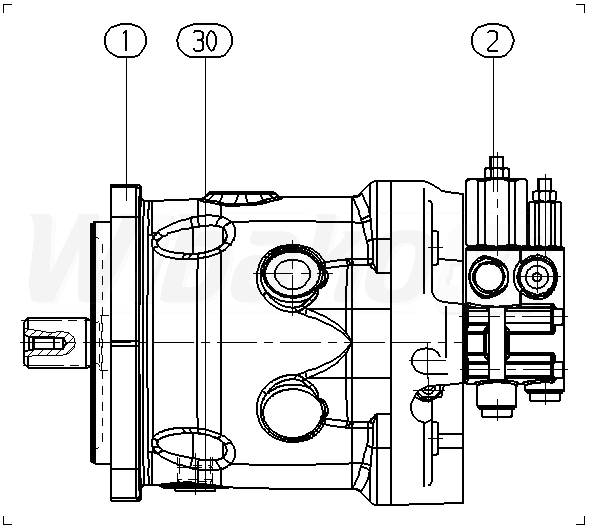

The above diagrams belong to Rexroth www.boschrexroth.com
