AA10VO71DRS/32L-VSD12N'980395*G*& (R902476379)
Axial piston variable pump O, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 32. Geometric displacement 71 cm3. Pressure controller with flow controller, hydraulic, X-T plugged with flushing function. Directions of rotation: counter-clockwise (viewed on drive shaft). Seal: FKM (fluoroelastomer). Splined shaft ANSI B92.1a, standard. Mounting flange ISO 3019-1 SAE C; 4-hole. SAE flange ports: at top, at bottom, on opposite side, metric fastening thread.

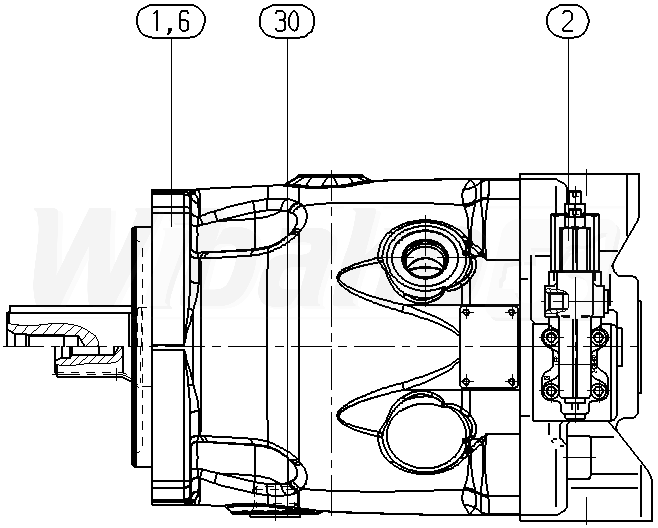

The above diagrams belong to Rexroth www.boschrexroth.com
