A A10V O 71 ED 72/32L-VSD12N00T (R902453936)
Axial piston variable pump O, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 32. Geometric displacement 71 cm3. Pressure controller, electric, negative control U = 24 V. Directions of rotation: counter-clockwise (viewed on drive shaft). Seal: FKM (fluoroelastomer). Splined shaft ANSI B92.1a, standard. Mounting flange ISO 3019-1 SAE C; 4-hole. SAE flange ports: at top, at bottom, on opposite side, metric fastening thread. Without through drive.

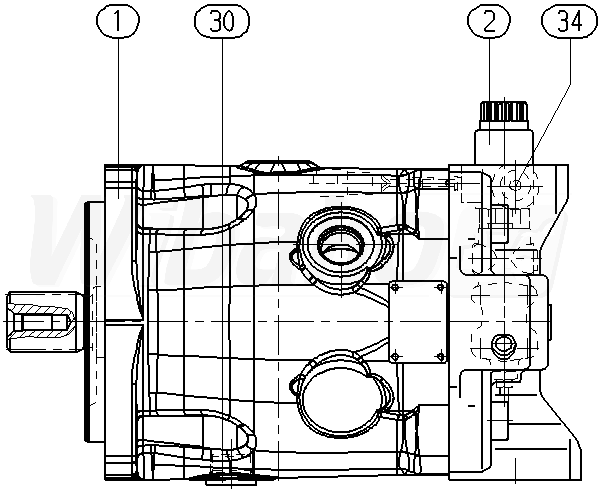

The above diagrams belong to Rexroth www.boschrexroth.com
