A A10V O 71 FHD /31L-VSC61N00 -SO478 (R902430079)

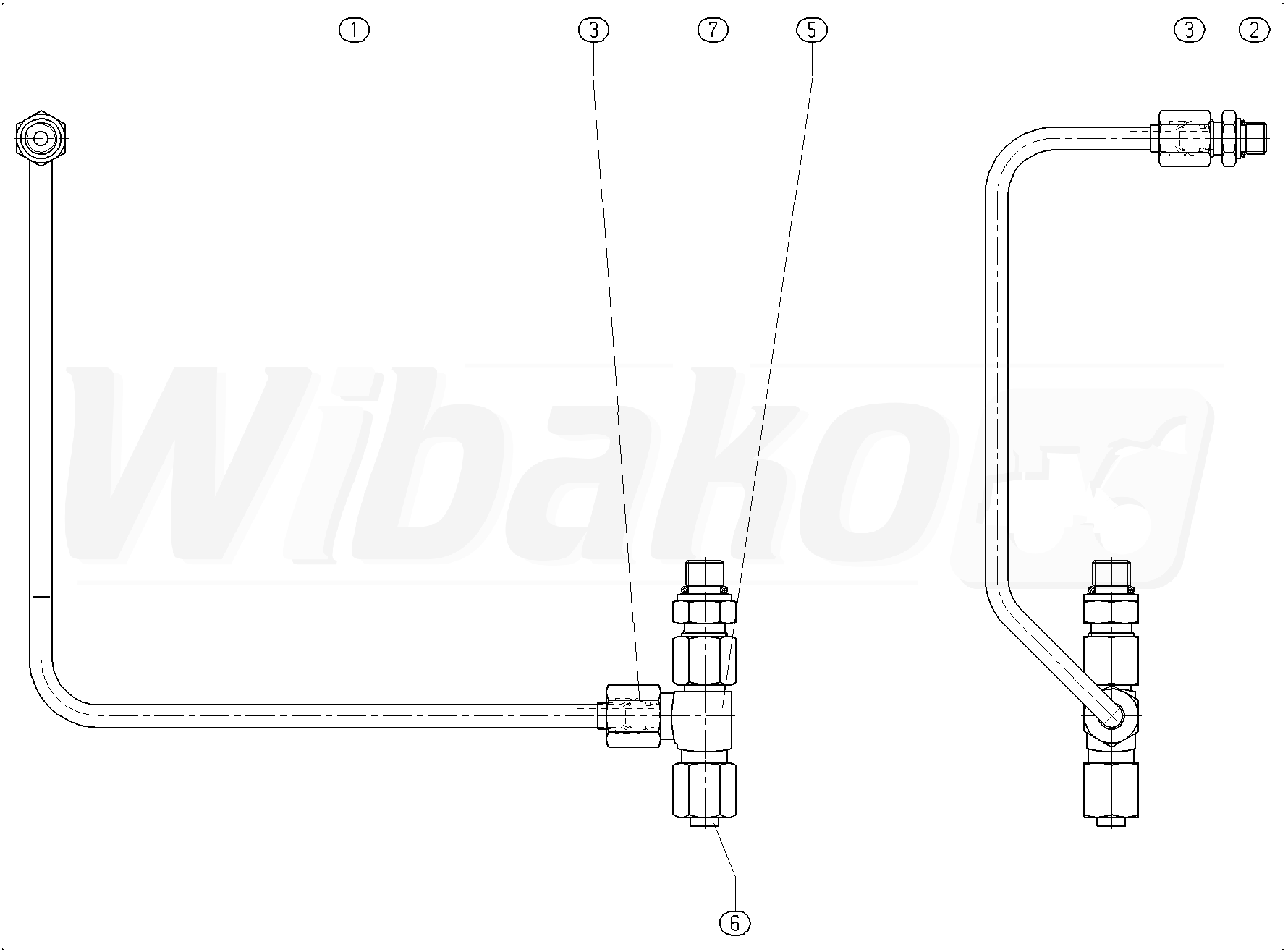

PIPING (118097)

PIPING
(118097)


1

PIPE
(118098)

Group »


2

THREADED FASTENER
(13285)


3

INTERMEDIATE RING
(13286)


5

THREADED FASTENER
(109565)


6

PLUG
(20713)


7

MALE CONNECTOR
(15649)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
